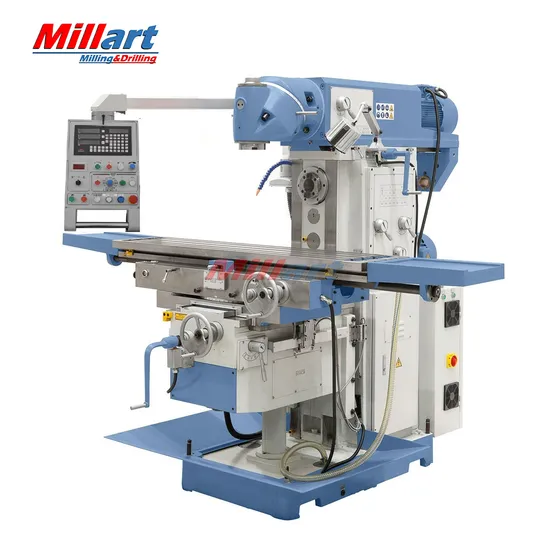

XL6436V Variable Speed Swivel Head Universal Milling Machine

Product Description

XL6436V Variable Speed Swivel Head Universal Milling Machine
Feature:
Variable speed adjustment (vertical spindle) via Siemens frequency inverter with optimal torque and almost constant speed at heavy workloads
Hardened and polished guideways guarantees top accuracy
Clear design of speed and feed controls
Finely graduated feeds in all axis, driven by servomotor
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Universal mill head system, adjusts to various angles optimal adjustments of spindle speed and feed allow for economic machining of various materials
Central lubrication in x- and y-axis comes standard
Technical parameter:

Specifications	Unit	XL6436AV	XL6436CV	XL6436CLV
Table size	mm	1325×360	1325×360	1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375	30~750/20~500/15~375	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)	7:24 IS050 (H) 7:24 IS050 (V)	7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	550	550	550
Distance between spindle nose and table surface	mm	196-656	196-646	196-646
Distance between horizontal nose and table surface	mm	20-480	20-470	20-470
Distance between spindle axis and arm surface	mm	200	200	200
Spindle speed range	r.p.m	(2) 60 - 350 / 350 - 1750 rpm (V) 12 steps 60-1800 (H)	(2) 60 - 350 / 350 - 1750 rpm(V) 12 steps 60-1800 (H)	(2) 60 - 350 / 350 - 1750 rpm(V) 12 steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80	3/18/80	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)	5.5 (H) 4 (V)	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	10	10	10
Overall size	mm	1800×2100×2000	2245×2100×2000	2245×2100×2000
Net weight	kg	2685	2750	2800

Standard accessories:
Draw bar
Coolant device
Coolant tray
LED machine light
Universal mill head
Spindle brake
Ball screws in all axis
Automatic central lubrication
Mill arbors
Tools
Optional accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
