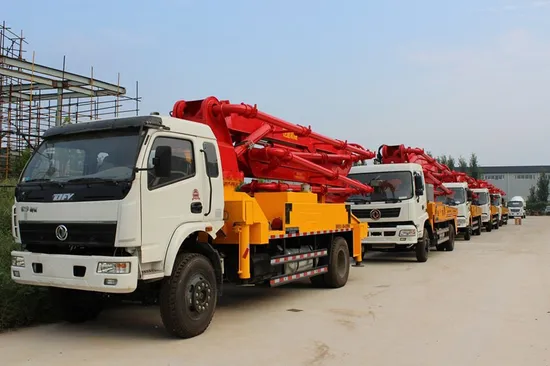

22m 21m 4 Section Concrete Pump Truck Boom Concrete Pumps

Product Description

Product Description
Our main products are:

There are over 90 varieties in more than ten series, including tower cranes, construction elevators, concrete mixers, concrete batching machines, concrete mixing plants, trailer concrete pumps, vehicle mounted concrete pumps, concrete mixing trucks, concrete boom pump trucks, asphalt mixing plants, stabilized soil mixing equipment, rollers, excavators, fully hydraulic rotary drilling rigs, garbage compactors, etc.

The company has passed the 9001 quality system certification,3C mandatory ,EU certification.
About customized: yes, we can customized as customer require.

Product Parameters
22m 21m 4 Section Concrete Pump Truck Boom Concrete Pumps

name	unit	HB-18M	HB-21M	HB-25M	HB-28M	HB-32M
Max. output	m3/h	50	50	50	60	60
max. peressure	Mpa	10/7.6	10/7.7	13/7.6	13/7.6	13/7.6
Rated working voltage	Mpa	31.5	31.5	31.5	31.5	31.5
Hopper volume	m3	0.66	0.66	0.66	0.66	0.66
Feeding height	mm	1430	1430	1430	1430	1430
hydraulic system model		open	open	open	open	open
tranfer- type		S-valve	S-valve	S-valve	S-valve	S-valve
Cylinder diameter	mm	125	125	125	125	125
concrete Cylinder diameter	mm	200	200	200	200	200
oil pressure cooling way		air cooling	air cooling	air cooling	air cooling	air cooling
max. placing height	m	18	21	25	28	32
Rotation angle		365°	365°	365°	365°	365°
Elevation angle		90°/180°/365°	90°/180°/365°	90°/180°/365°/540°	90°/180°/365°/540°	90°/180°/365°/540°
number of boom		3	3	4	4	4
chassie model		dongfeng, jiefang,Foton	dongfeng, jiefang,Foton	dongfeng, jiefang,Foton	dongfeng, jiefang,Foton	dongfeng, jiefang,Foton
wheel base	mm	4700	4700	5100	5200	5600
motor power	kw/rpm	160/2500	160/2500	160/2500	199/2500	249/1900
emisson standard		National IV	National IV	National IV	National IV	National IV
overweight	kg	15600	15800	15995	18600	20000
size	mm	9600*2350*3230	9570*2350*3230	9650*2350*3230	9700*24800*3400	10700*2480*3600
oil tand	L	300	300	300	300	360
water tank	L	300	300	300	300	300

Packaging & Shipping
Company Profile
About us
The Feibo industry, a sourcing factory on construction machinery found in 2012, located in Hunan, Changsha city.
Have passed the ISO9001:2008, TSI16949 certificate ,CE , and so on.
Professional supply for mechanical equipment, Concrete pump, pump truck, fabric machine and some auto parts, accessories and so on, for more than 10 years.
Strict QC team over 10 members, covering whole stages of production running.
SPARE PARTS
Certifications

Our Advantages
FAQ
1. who are we?We are based in Hunan, China, start from 2012,sell to North America(15.00%),Southeast Asia(14.00%),Mid East(13.00%),South America(12.00%),Africa(11.00%),Eastern Asia(10.00%),Eastern Europe(9.00%),Central America(9.00%),South Asia(3.00%),Northern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us? construction machine, concrete pumps, concrete pump truck, digging machine, used concrete pump truck, garden machine and so on4. why should you buy from us not from other suppliers?1. Strong production capacity: large-scale production. 2. Leading technology: Product performance and quality are competitive. 3. Rich experience: Provide professional solutions and customized products.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
