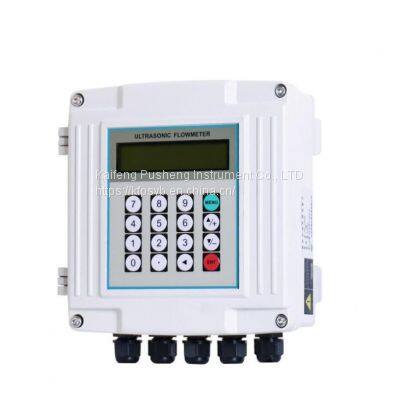

TUF-2000 has an isolated serial port, the RS485.
TUF-2000 can support more than 4 different communication protocols by the same time; include MODBUS-ASCII, ASCII-RTU, Meter-BUS, the Fuji Extended Protocol and more than 10 compatible communication protocols used by Huizhongs flow meters.
MODBUS is a very commonly used industrial protocol. Both the RTU and the ASCII format of MODBUS is supported
The Fuji Extended Protocol is developed based on the protocol used in a Japanese ultrasonic flow meter. It is totally compatible with that of Version 7 flow meter.
TUF-2000 can be used as a sample RTU terminal. The 4-20mA output in the TUF-2000 can be used to open an analog proportional valve; The OCT output can be used to control the turn-on and turn-off of other devices such as a pump. The analog input can be used to input pressure or temperatures signals.
There is a programmable device address (or ID number) located at window M46. When TUF-2000 is used in a network, all the parameters of the flow meter can be programmed through the network, except the device address that needs the keypad.
At most occasions, data should be obtained by polling the flow mete with a command, the flow meter will respond with what the master asks.
TUF-2000 can also set to automatically output data at a period which is programmable.
The TUF-2000 also has a special command sets to facilitate the use of the flow meter in a GSM network.
REGISTER
| NUMBER
| VARIABLE NAME
| FORMAT
| NOTE
|
0001-0002
| 2
| Flow Rate
| REAL4
| Unit: m3/h
|
0003-0004
| 2
| Energy Flow Rate
| REAL4
| Unit: GJ/h
|
0005-0006
| 2
| Velocity
| REAL4
| Unit: m/s
|
0007-0008
| 2
| Fluid sound speed
| REAL4
| Unit: m/s
|
0009-0010
| 2
| Positive accumulator
| LONG
| Unit is selected by M31, and depends on totalizer multiplier
|
0011-0012
| 2
| Positive decimal fraction
| REAL4
| Same unit as the integer part
|
0013-0014
| 2
| Negative accumulator
| LONG
| Long is a signed 4-byte integer, lower byte first
|
0015-0016
| 2
| Negative decimal fraction
| REAL4
| REAL4 is a format of Singular IEEE-754 number, also called FLOAT
|
0017-0018
| 2
| Positive energy accumulator
| LONG
|
|
0019-0020
| 2
| Positive energy decimal fraction
| REAL4
|
|
0021-0022
| 2
| Negative energy accumulator
| LONG
|
|
0023-0024
| 2
| Negative energy decimal fraction
| REAL4
|
|
0025-0026
| 2
| Net accumulator
| LONG
|
|
0027-0028
| 2
| Net decimal fraction
| REAL4
|
|
0029-0030
| 2
| Net energy accumulator
| LONG
|
|
0031-0032
| 2
| Net energy decimal fraction
| REAL4
|
|
0033-0034
| 2
| Temperature #1/inlet
| REAL4
| Unit: C
|
0035-0036
| 2
| Temperature #2/outlet
| REAL4
| Unit: C
|
0037-0038
| 2
| Analog input AI3
| REAL4
|
|
0039-0040
| 2
| Analog input AI4
| REAL4
|
|
0041-0042
| 2
| Analog input AI5
| REAL4
|
|
0043-0044
| 2
| Current input at AI3
| REAL4
| In unit mA
|
|
0045-0046
| 2
| Current input at AI3
| REAL4
| In unit mA
|
0047-0048
| 2
| Current input at AI3
| REAL4
| In unit mA
|
0049-0050
| 2
| System password
| BCD
| Writable。00H for unlock
|
0051
| 1
| Password for hardware
| BCD
| Writable。“A55Ah” for unlock
|
0053-0055
| 3
| Calendar (date and time)
| BCD
| Writable。6 Bytes of BCD stands SMHDMY，lower byte first
|
0056
| 1
| Day+Hour for Auto-Save
| BCD
| Writable。For example 0512H stands Auto-save on 12:00 on 5th。0012H for 12:00 on everyday。
|
0059
| 1
| Key to input
| INTEGER
| Writable
|
0060
| 1
| Go to Window #
| INTEGER
| Writable。
|
0061
| 1
| LCD Back-lit lights for number of seconds
| INTEGER
| Writable。In unit second
|
0062
| 1
| Times for the beeper
| INTEGER
| Writable。Max 255
|
0062
| 1
| Pulses left for OCT
| INTEGER
| Writable。Max 65535
|
0072
| 1
| Error Code
| BIT
| 16bits, see note 4
|
0077-0078
| 2
| PT100 resistance of inlet
| REAL4
| In unit Ohm
|
0079-0080
| 2
| PT100 resistance of outlet
| REAL4
| In unit Ohm
|
0081-0082
| 2
| Total travel time
| REAL4
| In unit Micro-second
|
0083-0084
| 2
| Delta travel time
| REAL4
| In unit Nino-second
|
0085-0086
| 2
| Upstream travel time
| REAL4
| In unit Micro-second
|
0087-0088
| 2
| Downstream travel time
| REAL4
| In unit Micro-second
|
0089-0090
| 2
| Output current
| REAL4
| In unit mA
|
0092
| 1
| Working step and
Signal Quality
| INTEGER
| The high byte is the step and low for signal quality，range 00-99，the larger the better.
|
0093
| 1
| Upstream strength
| INTEGER
| Range 0-2047
|
0094
| 1
| Downstream strength
| INTEGER
| Range 0-2047
|
0096
| 1
| Language used in user interface
| INTEGER
| 0 : English，1:Chinese
Other language will be supported later
|
0097-0098
| 2
| The rate of the measured travel time by the calculated travel time.
| REAL4
| Normal 100+-3%
|
0099-0100
| 2
| Reynolds number
| REAL4
|
|
