Big Size Lump Pipe Plastic Crusher Shaft Shredder Machine

Product Description

big size lump pipe Plastic Crusher Shaft Shredder Machine
Specification:
1. It is the ideal plastic shredder which can shred many things such as big pipes, big baled films, or other baled plastic material. We can install different screen according to different material.
2. The shredder adoptes the advanced technology, these models are efficiently capable of shredding materials that are quite thick and tough such as those wasted junks in the die, large plastic pipes, packing buckets and splints of the forklift truck and especially for recycling different materials such as plastic, rubber and wood in shredding ways.
3. Processing procedure, feeding machine-shredder-conveying belt-second crusher- conveying storag
(1)Wood, Hard Block, Pipes Plastic Single Shaft Shredder:
Application: This type of shredder is mainly used to grind, crush and recycle the waste hard plastics difficult to crush, such as rubber, fiber, paper, wood, electronically equipments, cable, big lumps , blocks of wood , packed paper and so on. The end material can decide by the machine type.
Technical Parameters of Wood, Hard Block, Pipes Plastic Single Shaft Shredder:

Model	Push power(KW)	Main Motor(KW)	Rotary Blade	Stationary Blade	Tactical diameter(mm)	Rotate speed(r/min)	capacity(kg/h)	outline diemensionL*W*H(mm)
S1-600	1.5	22 or 30	28	2	252	90	400-600	1800*1215*1850
S1-800	2.2	30 or 37	38	2	400	85	500-750	2700*1700*2350
S1-1000	2.2	37 or 45	48	4	400	80	600-900	2700*2000*2350

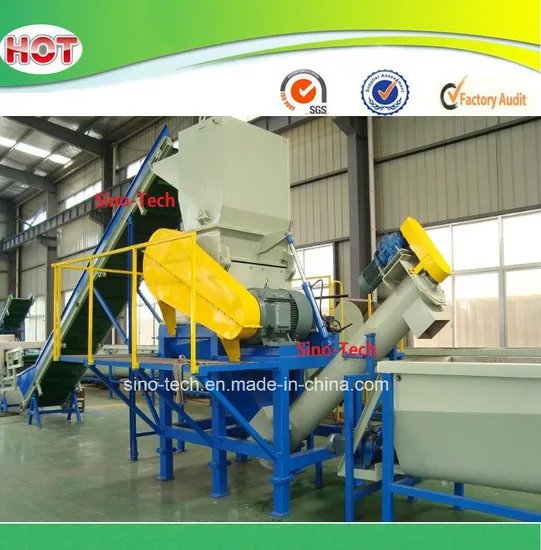

MACHINE PICTURE:
PROCESSING MACHINE
Any question,please call me.
MOB&waspp: +8613773240086

---
