American Standard Channel Steel

Product Details

Product Description

Product Description

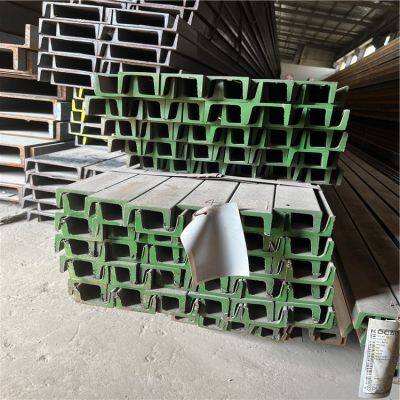

Product Introduction: American Standard Channel Steel C15×33.9The C15×33.9 is a widely used American Standard Channel Steel (C-Shape) known for its excellent structural performance and versatility. Below is a detailed introduction to its specifications, material, mechanical properties, and applications.
1. Basic ParametersParameter NameValue

Model	C15×33.9
Depth (h)	15.00 inches (381.0 mm)
Flange Width (b)	3.52 inches (89.4 mm)
Web Thickness (tw)	0.65 inches (16.5 mm)
Flange Thickness (tf)	0.40 inches (10.2 mm)
Weight	33.9 lb/ft (50.5 kg/m)

2. Material and StandardsMaterial: Typically made of ASTM A36 (carbon structural steel) or ASTM A572 (high-strength low-alloy steel).
Standards: Complies with ASTM A6/A6M standards.
3. Mechanical PropertiesPerformance IndicatorValue

Yield Strength (Fy)	36 ksi (250 MPa)
Tensile Strength (Fu)	58-80 ksi (400-550 MPa)
Elongation	≥ 21%

4. Advantages and FeaturesHigh Strength: With a yield strength of 36 ksi, the C15×33.9 is suitable for high-load structural applications.
Lightweight Design: Weighing only 33.9 lb/ft, it reduces structural self-weight and foundation costs.
Precise Dimensions: Manufactured to strict American standards, ensuring accurate dimensions for easy installation and construction.
Versatility: Suitable for a wide range of applications, including building frames, supports, and industrial structures.
5. ApplicationsThe C15×33.9 Channel Steel is widely used in:
Building Structures: Beams, columns, and frames for residential, commercial, and industrial buildings.
Bridges: Support structures and bracing.
Industrial Facilities: Platforms, mezzanines, and equipment supports.
Infrastructure Projects: Towers, warehouses, and storage facilities.
6. SummaryThe C15×33.9 is a high-quality American Standard Channel Steel that combines strength, lightweight design, and precise dimensions. Its excellent mechanical properties and versatility make it a reliable choice for various structural applications. For detailed technical parameters or procurement advice, feel free to contact us!

---
