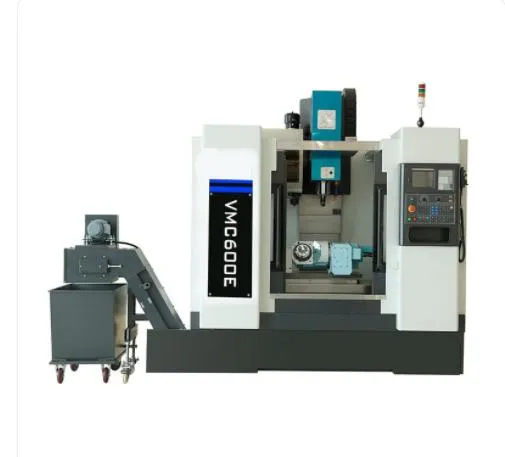

Vmc600e Vertical Machining Center CNC Machine Vertical Milling

Product Description

	Unit	VMC600E
Table	Table size	mm	800 x 380
	T slot(width x nos. x distance)	mm	14 x 3 x 110
	Max. load	Kg	350
Travel	X/Y/Z Travel	mm	600/350/450
	Spindle nose to table	mm	50-500
	Spindle center to column	mm	450
	Guideway type		LM: XYZ
Spindle	Spindle type		BT40
	Main servo motor	KW	3.7/5.5, *5.5/7.5
	Spindle speed	rpm	6000, *8000, *12000
Feed & Magazine	X/Y/Z axis rapid traverse	m/min	20/20/20
	ATC capacity/type	No. /type	16/Drum, *20/Arm
	Max. weight of tool	Kg	8
Dimension & Weight	Power capacity	kVA	15
	Dimension	mm	2400 x 2000 x 2320
	Weight (about)	Kg	2500
Note: *means optional, LM means linear motion guide way.

Product Description
VERTICAL MACHINING CENTER SERIES
★: Precision linear guideways provide high speed rapids;
★: Heavy-duty high quality castings provide a solid structure and rigid foundation;
★: The casting bed and Y-shaped column design provide solid support to ensure ultimate dynamic accuracy;
★: Direct drive spindle efficiently seperates the heat generated from the motor, which reduces deformation;
★: High-performance magazine achieves quick tool change to minimize non-cutting time;
★: Full enclosed guard cover and advanced sheet metal design;
★: Fanuc 0i MF Plus/Siemens 828D/Mitsubishi M80A control systems;
TECHNICAL PARAMETERS

Item	Specifications	Unit	VMC600E
Table	Table size	mm	800x380
	T slot	N/A	14x3x110
	Max.load	Kg	350
Travel	X/Y/Z travel	mm	600/350/450
	Spindle nose to table	mm	50-500
	Spindle center to column	mm	450
	Guideway type	N/A	LM: X/Y/Z
Spindle	Spindle type	N/A	BT40
	Main servo motor	kW	5.5/7.5
	Spindle speed	rpm	8000, *12000
Feed&Magazine	X/Y/Z axis rapid traverse	m/min	20/20/20
	Cutting feed rate on X/Y/Z	mm/min	1-10000
	ATC capacity/type	N/A	24/Arm
	Max.weight of tool	Kg	8
Accuracy	Positioning	mm	0.008
	Repeatability	mm	0.005
Dimension&weight	Power capacity	kVA	15
	Dimension(LxWxH)	mm	2400x2000x2320
	Weight(about)	Kg	2500

---
