Cy08-V1.1 Wholesale Electronic Components RF Receiver Module

Product Description

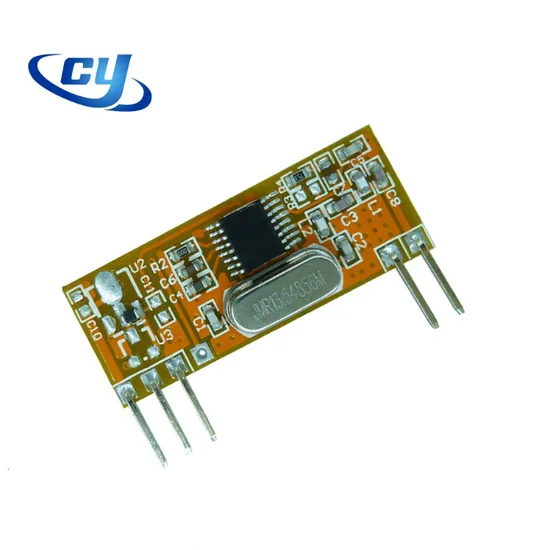

CY08-V1.1 433.92mhz Wireless RF receiver module Product Description Description:
The CY08-V1.1 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets. The model has a high receiving sensitivity and strong ability of resisting. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development.
The CY08-V1.1 is a comersion level version
Features: Frequency: 315MHz/433.92MHz (custom frequency is available); High sensitivity -110dBm/433.92 1kbps BER10E-2; Supply voltage: VCC= 3.6 to 5.5 V; IF band: 230KHz; Low power consumption: 4.8mA/315M, 6mA/433.92M. Excellent selectivity and noise rejection; Application Remote gate controls Remote keyless entry Car alarm systems Wireless security systems Automation systems

Pin Name	Pin Definition
ANT	Antenna In
GND	Connect to negative power supply
EN	Optional output: 1.Empty(Default Setting ); 2.Battery saving mode(shut down): (Working mode in low level input) (Sleeping mode in high level input)
GND	Connect to negative power supply
DATA	Data Output
VDD	Positive Supply Power

Detailed Photos
Packaging & Shipping
Certifications
Company Profile

---
