100kw200kw800kw1000kVA Yuchai Weichai LPG Biogas Natural Gas Biomass Generator

Product Description

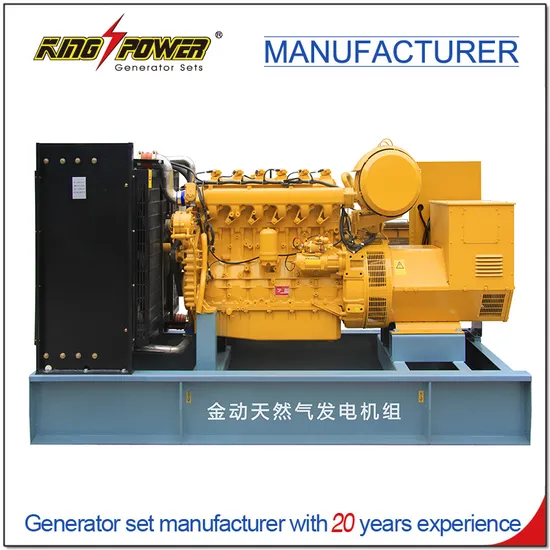

1000KVA MWM Gas Generator set for Power Station
Basic Specification

Generator Engine: MWM	Generator Alternator: Stamford, Marathon, Leroy Somer, Robot, Engga, etc.
Generator Controller: DS510B, Deep Sea, Smartgen.	Gas Mixer: King Power;
Ignition System: ECU(King Power), Altronic	Governor: King Power, Woodward
Generator Rated Voltage: Low / High voltage	Rated Voltage: 400V/230V, 380V/220V
Maximum Power: >70	Output Type: AC Three Phase
Frequency: 50Hz/60Hz	Rate: 1500r/1800r
Certification: CE, ISO9001	Gen-set Dimension: 6246x1480x2280(mm)
Weight: 6530KG

Package & Payment & Delivery Date
Package: EPE/ Ply-wood packing.
Payment term: 30% T/T as deposit, 70% balance shall be paid before delivery. Or 100% irrevocable L/C at sight.
Price term: FOB, CFR, CIF, EXW
Delivery time: 20-35 working days after getting the deposit.

Genset Information
1. Intelligent and reliable ignition and speed control systems.
2. 42.5% electricity efficiency.
3. MWM natural gas engine originated from Germany.
4. Can be operated for 24 hours without stop.
5. Built-in damper for anti-vibration.
6. Full range protection function and alarm shutdown feature.
7. Supply of all the necessary spare parts.
8. OEM quality promise.
9. 64000-80000 hours over-haul period.
10. Low maintaining cost.
Engine
Bore & Stroke: 132×160(mm)
Displacement: 35L
Alternator Feature
1. Customer-made low or medial or high voltage.
2. IP21-23) enclosure is standard for all industrial alternators.
3. The insulation system is Class H.
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adapters and single bearing disc coupling.
6. Standard 2/3 pitch windings avoid excessive neutral currents.
7. AVR auto voltage regulator, auto exciter, auto adjustment.
8. Brush-less, 4 poles, rotation magnet.
Requirements to Natural gas:
Thermal Value ≥41860 KJ/m3, CH4 ≥85% (By Volume), S≤460 mg/m3, H2S ≤ 20 mg/m3
Gas Pressure: 80--200kpa (Air storage tank)
Gas should be exact dry after processed and dirty mixed on the gas should be less than 0.005 mm, dirty contents should be not larger than 0.03 mg/m3, Standard condition of natural gas volumes must be 101.3 kpa.

Standard Accessory
Ignition & speed control system, Steel base frame, 3 meters smoke pipe, Exhaust silencer, Flanges, Bellows, Battery and connecting wires,
Operation manual and documents, Load test report, Water temperature sensor, Oil-pressure sensor, MCCB, Control panel, Maintaining tools, etc.
Optional Accessory
Gas Solenoid Valve, Pressure reducing valve, Pressure gauge, Fire retardant valve, Gas mixer, Engine coolant and oil heater, Alternator space heater, Heat exchanger, Remote control system with RS232/485 communication interface, Floating battery charger, Fuel-water separator, ATS, VTS, Paralleling system, Synchronizer, Moving trailer or wheels, Sound-proof canopy, Water-proof canopy, Extra spare parts.
Silent Canopy performance
1. Steel Weatherproof Canopy
2. Built In Fuel Tank
3. Built In Control Panel
4. Built In Start Battery
5. Power Output Rapid Insert
6. Doors for Looking or maintaining
7. Air Louver for Intake & Exhaust
8. Exhaust Gas Silencer
9. Assembled smoke pipes
10. Filled with high quality silencer cotton
11. Strong sense of design
12. Easy for operating
ATS System
If the generator set will be used as a standby power, the auto transfer switch (ATS) is necessary and essential. Because ATS can automatically transfer load from Mains power to generator set. In normal, when the Main power fails or voltage drops below 80% of the normal voltage, ATS will auto start standby generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reaches at rated speed, the ATS will transfer the load to standby generator sets automatically.
Quality Warranty Period
One year or 1000hours from the genset's delivery from the seller, subject to whichever comes first. Customers can have get the warranty from both the engine or alternator suppliers and also from King Power during the warranty period. We promise to test every generator set before delivery.
After-sale service
King power provides free technical support and spare parts during the warranty period. We can also provide support to the customers, if the customers need us to help fix the installation or commission, only charging the necessary fees. All life-span technical support on line can be offered freely.

---
