4GL-120 reaper Walking/hand tractor/Mechanical Agriculture harvester,Shuhe brand

Product Description

Product Description

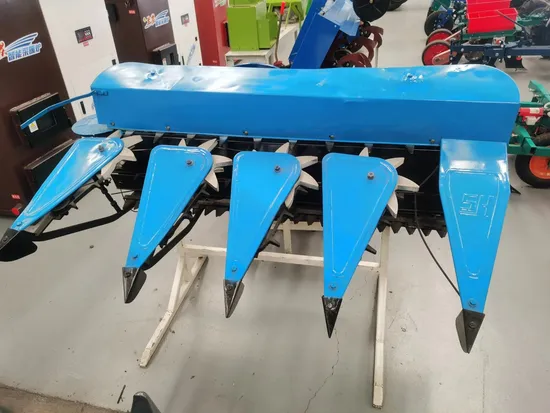

4GL-120 Walking tractor harvester

Model	4GL-120
Equipped power	15hp walking tractor
Equipped power speed(r/min)	2200
Measurement: L x W x H mm	1400 x 1770 x 700
Full weight(kg)	100
Production efficiency(m2/hour)	2000-4000
Cut width(m)	1.2
Stubble height(mm)	≥25
Laying form	Strips are laid on the right
Laying angle	90°±20°±
Crank speed(r/min)	550
Conveying speed(s/m)	2.38
Number of wheathosters	4
Cutting stroke(mm)	50

The global sales record of Shuhe brand walking tractors: 5million units. Company Profile
Shandong Changlin Paike Agricultural Machinery Co., Ltd. is one of the subsidiaries of Shandong Changlin Machinery Group, which is an agricultural machinery manufacturing enterprise integrating R&D, manufacturing, sales and service. The products are "Shuhe" series corn harvester, rice dryland mulching fertilizer control water application direct integrated machine, straw picking and baler machine, grain dryer, agricultural machinery, 8-20 horsepower walking tractors, farm tractors, diesel engines and so on.
About Shuhe brand
First famous national brand of agricultural machinery in China
Global sales record of 5 million unit
Registered on Feb 28,2010.
Registered by Shandong Changlin Machinery Group Co., Ltd.
Manufactured by Shandong Changlin Pike Agricultural Machinery Co., Ltd.
Zimbabwe ambassdor and minister visited our factory

---
