US$1,800.00-2,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, RoHS, ISO 9001
Max. Grinding Length
600mm
Max. Grinding Width
250mm
Transport Package
Wood Case
Specification
CE ISO9001 SGS ROHS
Production Capacity
50 PCS/Month
Packaging & Delivery
Package Size
1200.00cm * 1340.00cm * 1960.00cm
Package Gross Weight
900.000kg
Product Description
Product Description

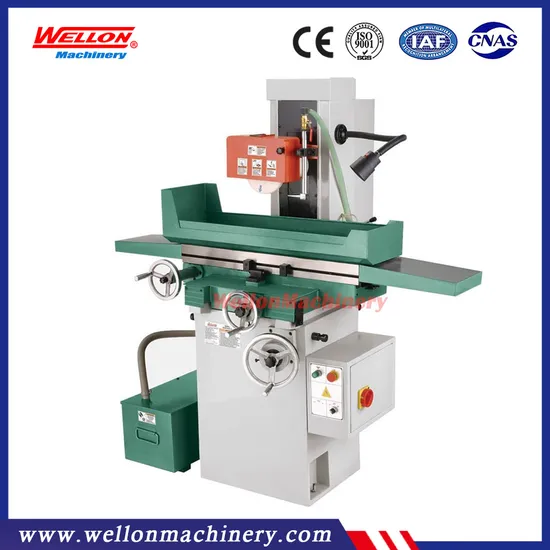

Detailed Photos
Product Parameters
Performence Features:
1,Compact structure and easy operate.
2,Table longitudinal movement by hydraulic.
3,Table transverse feed by automation operate or by handle.
4,Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
Technical parameter:
| Model | Unit | M1022 |
| Max.workpiece to be Ground | mm | 600x250x490 |
| Max. Grinding Length | mm | 600 |
| Max. Grinding Width | mm | 250 |
| Distance From Table To Spindle Center | mm | 490 |
| Slide way | | V-type rail with Steel-ball |
| V-type rail with Steel-ball | Kg | 250 |
| Table Size | mm | 550x260 |
| Number of T -Slot | Mm | 12x1 |
| Speed OF Working Table | m/min | 3-23 |
| Cross Feed On Handwheel | mm | 0.02/Gra 2.5/rev |
| Vertical Feed On Handwheel | mm | 0.01/Gra 1.25/rev |
| Wheel Size | mm | 200x16x31.75 |
| Spindle Speeds | rpm | 2850 |
| Spindle Motor | Kw | 1.1 |
| Coolant Pump | Kw | 0.4 |
| Machine Size | mm | 1800x1400x1800 |
| Packing Size | mm | 1200x1340x1960 |
| Gross,Net/weight | kg | 900/850 |
Standard accessories:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Too box and tools
Balance stand
Leveling wedge and bolt
Wheel dresser stand
Optional accessories:
Electro magnetic chuck
Balancing stand
Cooling and dust collector
Parallel wheel dresser
Dust collector
2 axis DRO
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
>>
