Visual Stakeout Base and Rover Rtk GPS Gnss Receiver Chcnav I76/X13

Product Description

Product Description
Specification

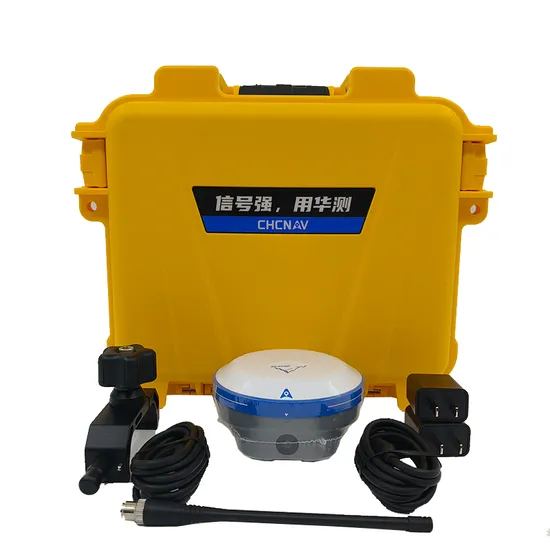

1408 Channels Land Survey Equipment CHCNAV I76 X13
Saluran	Saluran 1408
GPS	L1C/A,L1C,L2C,L2P,L5
GLONASS	G1,G2,G3
Sahara Eo	E1,E5a,E5b,E6 *
SBAS	L1C/A *
QZSS	L1C/A,L1C,L2C,L5
IRNSS	L5 *
BDS	B1I,B2I,B3I,B1C,B2a,B2b *
Akurasi GNSS
Kinematik waktu nyata (RTK)	Horisontal: 8mm + 1 ppm RMS Vertikal: 15mm + 1 ppm RMS Waktu inisialisasi: <10 s Keandalan inisialisasi: >99.9%
Kinematika pasca Pengolahan (134)	Horisontal: 3mm + 1 ppm RMS Vertikal: 5mm + 1 ppm RMS
Pasca proses statis	Horisontal: 2.5mm + 0.5 ppm RMS Vertikal: 5mm + 0.5 ppm RMS
Perbedaan kode	Horisontal: RMS 0.4 m Vertikal: 0.8 m RMS
Otonomi	Horisontal: 1 m RMS Vertikal: 1.5 m RMS
Posisi kecepatan	1Hz, 5Hz dan 10Hz
Waktunya memperbaiki pertama	Mulai dingin: < 45 dtk Awal yang panas: < 10 detik Akuisisi ulang sinyal: < 2 dtk
Pembaruan rate IMU	200Hz
Sudut kemiringan	0-60°
RTK tilt-Kompensasi	Pole-tilt tambahan horizontal Kaus biasanya kurang dari 10mm + 0.7mm/° tilt
Perangkat Keras
Ukuran (P x L x T)	133.5mm * 80mm
Berat	0.73 kg (1.60 lb)
Panel Depan	4 LED, 2 tombol fisik
Lingkungan	Operasi: -40 °C hingga + 65 °C (-40 °F hingga + 149 °F) Penyimpanan: -40 °C hingga + 85 °C (-40 °F hingga + 185 °F)
Kelembaban	100% kondensasi
Pelindung colokan	IP67 tahan air dan tahan debu, dilindungi dari pencelupan sementara hingga kedalaman 1 m
Kejut	Bertahan tiang drop 2 meter
Sensor kemiringan	IMU gratis kalibrasi untuk kompensasi kemiringan. Anti-gangguan magnetis. Perataan e-bubble
Komunikasi
Wi-Fi	802.11 b/g/n, mode titik akses
Bluetooth	V4.2
Lainnya	NFC
Port	1 x port USB tipe-c (daya eksternal, unduhan data, pembaruan firmware) 1 x port antena UHF (perempuan TNC)
Radio UHF	Tx/Rx Internal standar: 410 -470 MHz Daya transmisi: 0.5 W, 1W Protokol: CHC, transparan, TT450, Satel Tingkat tautan: 9,600 bps hingga 19,200 bps
Format Data	RTCM 2.x, RTCM 3.x, Input/output CMR HCN, HRC, RINEX 2.11, 3.02 Keluaran Nela 0183 Klien NTRIP, NTRIP Caster
Penyimpanan Data	Memon internal 8 GB
Listrik
Konsumsi daya	4 W umum (tergantung pengaturan pengguna)
Kapasitas baterai Li-ion	Baterai bawaan yang tidak dapat dilepas 6800 mAh, 7.4 V
Waktu operasi baterai internal	UHF I4G RTK Rover: hingga 14.5 h UHF RTK Base: hingga 6.5 h statis: hingga 18 h
Sertifikasi
CE Mark; FCC bagian 15 subbagian B Kelas B; NGS antena kalibrasi

Packing & Delivery
Company Profile Shanghai Newdi Navigation Technology Company Limited (NEWDI) was established in Shanghai China. We are engaged in providing high-precision surveying and mapping instrument. The involved industries include land survey, construction, marine and UAVTill now, we have a professional sales team with 5 year experience in average. Branch office in the USA, DUBAI, India and South Africa offers local technical support to word wide users. We put technical support and ll be input our Rafter sale service as our highest level principle. 10% of our revenue is input into R&D every year. We never stop developing a better product for our customer. Quality issues are at the forefront of NEWDI's philosophy. NEWDI received ISO 9001 certification from International Standards Organization. It applies to all aspects of NEWDI's every development process and workflow, covering all steps from the initial design to the final delivery. Our distribution network covers more 10 countries. We take the mission to make survey easier. We are proud of the value that customer benefit from our service and returns continuous trust to NEWDI.
FAQ 1. who are we?We are based in Shanghai, China, start from 2016,sell to Southeast Asia(30.00%),Africa(25.00%),South America(15.00%),North America(10.00%),South Asia(5.00%),Mid East(5.00%),Eastern Europe(3.00%),Central America(2.00%),Oceania(2.00%),SouthernEurope(2.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?GNSS Receiver,Total Station,Level,UAV,Marine Product4. why should you buy from us not from other suppliers?Shanghai Newdi Navigation Technology Company Limited (NEWDI) was established in Shanghai China. We are engaged in providing high-precision surveying and mapping instrument. The involved industries include land survey, construction, marine and UAVTill now.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.

---
