China Automatic Weighing Machine Production Line for Quilts Filling Machines for Stuffed Pillow

Product Description

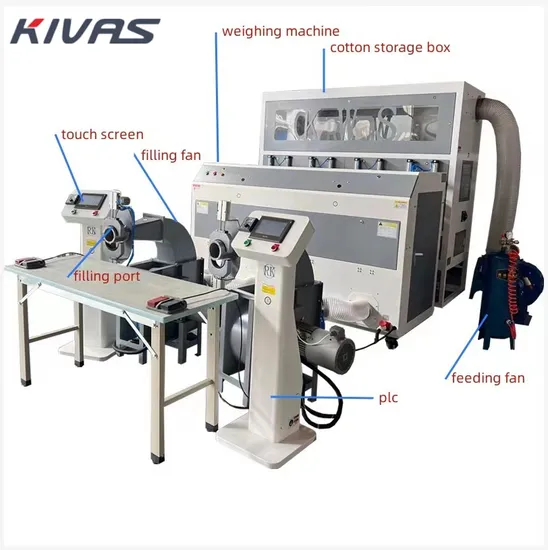

Product Description This machine is equipped with three sets of filling ports, which can meet various styles.The filling requirement of large gram weight. A set of fixture type filling port, mainly used for filling pillow core, pillow and other products. Two sets of different diameters and length of straight tube filling nozzle, φ65mm * 70cm can fill feather duvet, φ90mm * 25cm can be filled with full format pillow core, cushion,sofa pillow and other products.
·Adopt high-precision sensors, the accuracy value is adjustable within 1 gram; adopt super large hopper, the single weighing range is about 100-1200 grams, which solves the problem that filling large grams of products in the home textile industry has been unable to accurately quantify.
·Oversized storage box can store 50-80KG materials at one time, saving the feeding time. Optional unmanned feeding system,automatically feed when there is no material in the storage box, and automatically stop when there is material.
·It solves the problem of multi-purpose of a single machine, and can be compatible with filling 3D-17D high fiber cotton, down and feather pieces (10-80MM in length), flexible latex particles, high elastic sponge scraps, wormwood, as well as the mixture involved, fully improving the cost performance of the equipment.
·Modular configuration of filling nozzle: θ 60mm, θ 80mm, θ 110mm, can be replaced without any tools according to the product size.
·This machine can be linked with streamline equipment such as bale-opener, cotton-opener, mixing machine, and can realize production automation.
·Adopt PLC programmable controller and high-precision weighing module, achieving more accurate and efficient production capacity.
·One person can operate two filling mouths at the same time, reducing labor and saving costs.

Model		KWS-6901-2
Dimension :(mm)	5700*2600*5900mm (15m2)	Gross Weight		1650KG
Main Body Size	2400×950×2950×1 set	Filling nozzls		Two Heads (4 Scales)
Weighing Box Size	2200×950×1400×1set	Heavy Duty Allocation		Yes
Filling Fan	800×600×1100×2sets	Accuracy Class		Down ±5g / Fiber ±10g
Independent Table	400×400×1200×2sets	Display Interface		10HD Touch Screen
Feeding Fan	550×550×900×1set	Auto Feeding System		Incudibng feeding fan
Net Weight	1305kg	USB Data Import Function		Yes
Filling Range	100-2000g	Cycle Number		2 times
Storage Capacity	30-50kg	USB Data Import Function		Yes
Accuracy Class	Down±5g /Fiber ±10g	Heavy Duty Allocation Deduction		Yes
Auto Feeding System	Optional	Filling Speed		500g pillow 7-10pcs/min
Air Pressure	0.6-0.8Mpa	Voltage/Power		380V50HZ/10.5KW

Company Profile
Customer Visit
Certifications
Application
Customer Feedback
Packaging & Shipping
FAQ Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4.When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.

---
