CNC Press Brake with CT8 Controller 3+1 Axes 63ton 2500mm

Product Description

Product Description
More than 30 years of expertise in the manufacture of CNC Press Brakes, Shearing machines, Guillotine machine, CNC Laser Cutting machines, CNC Grooving machines Hydraulic Angle Notching Machine and machine tools give us the security that is needed for future challenges.

High standards of quality and a team with the best training and knowledge are major conditions for our success.
Our products are the result of a continued focus on improving internal processes underpinned by high-quality levels, that result in the recognition of Xinmechan's machines as quality guarantee equipment.

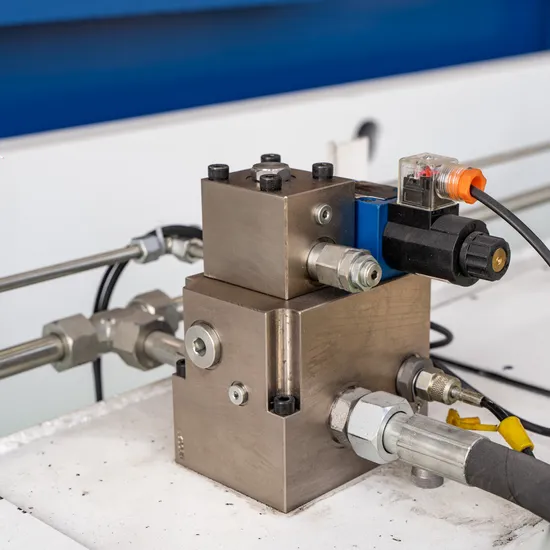

Detailed Photos

Product Parameters
Specification chart

Model	Pressure (kN)	Length of Worktable (mm)	Distance of column (mm)	Throat Depth (mm)	Stroke / times	Max. Height (mm)	Main Power (Kw)	Dimension L*W*H (mm)
40T/2200	400	2200	1775	250	100/10	320	5.5	230*150*200
40T/2500	400	2500	1975	250	100/10	320	5.5	260*150*200
63T/2500	630	2500	2095	250	120/10	360	5.5	260*160*230
63T/3200	630	3200	2570	250	120/10	360	5.5	330*160*230
80T/3200	800	3200	2565	320	120/10	360	7.5	330*170*230
80T/4000	800	4000	3165	320	120/10	360	7.5	410*170*230
100T/3200	1000	3200	2560	320	120/8	360	7.5	330*180*240
100T/4000	1000	4000	3160	320	120/8	360	7.5	410*180*240
125T/3200	1250	3200	2550	320	120/7	360	7.5	325*192*245
125T/4000	1250	4000	3450	320	120/7	360	7.5	400*192*250
160T/3200	1600	3200	2540	320	180/6	440	11	330*160*260
160T/4000	1600	4000	3140	320	180/6	440	11	410*200*260
160T/6000	1600	6000	4740	320	180/6	440	11	610*200*260
200T/3200	2000	3200	2540	320	250/3	530	11	330*210*280
200T/4000	2000	4000	3140	320	250/3	530	11	410*210*290
200T/5000	2000	5000	3940	320	250/3	530	11	510*210*300
250T/4000	2500	4000	3120	400	250/3	560	18.5	410*220*350
250T/5000	2500	5000	3920	400	250/3	560	18.5	510*220*350
250T/6000	2500	6000	4720	400	250/3	560	18.5	610*220*350
300T/5000	3000	5000	3910	400	250/3	560	22	510*260*400
300T/6000	3000	6000	4710	400	250/3	560	22	610*260*400
300T/7000	3000	7000	5620	400	250/3	560	22	710*260*440
320T/7000	3200	7000	5620	400	250/2.5	560	22	710*260*440
350T/6000	3500	6000	5100	400	250/2.5	560	30	610*260*420
350T/7000	3500	7000	5620	400	250/2.5	560	30	710*260*450
400T/4000	4000	4000	3100	400	300/2.5	620	30	410*270*380
400T/6000	4000	6000	4280	400	320/2.5	620	30	610*280*420
500T/5000	5000	5000	4100	400	320/2.5	630	37	510*300*440
500T/6000	5000	6000	4820	400	320/2.5	630	37	610*300*470
500T/7000	5000	7000	5620	400	320/2.5	630	37	710*300*490
600T/6000	6000	6000	4820	400	320/2.5	630	46	610*296*470
600T/7000	6000	7000	5620	400	320/2.5	630	45	710*296*490

These are only some typical sizes. More are available. Please contact us for further information.
OEM service is also available. Just send us the essential information of the machines. Our proficient engineers will take care of the rest.
Certifications
Company Profile
JIANGSU XINMECHAN CO., LTD. is a modern enterprise, running CNC Press Brakes, Shearing machines, Guillotine machine, CNC Laser Cutting machines, CNC Grooving machines Hydraulic Angle Notching Machine and machine tools.
Our company has a group of knowledgeable and professional young team workers who are specialized in different subjects of the mechanical industry, committed to serving our customers. We can supply standard products as well as meet the special order requirements of customers and provide an optimum plan for every user.

At present, our products are widely used in various fields, such as ship and vehicle construction, aerospace, power industry, petrochemicals, iron and steel metallurgy, engineering machinery, container, bridge building, construction materials, and other industries.
We are constantly involved in technological innovation and technical improvement to supply more advanced products for you. 'KEEP LEADING TECHNOLOGY, QUALITY FIRST, HONESTY, PRAGMATIC AND INNOVATIVE' is our business philosophy. We had implemented the international quality system standards fully. Each process of production and delivery is to the requirements of national and industry standards as well as users' needs strictly. We can guarantee the products our customers received are of superior quality.
We sincerely want to bring you excellent services and qualified products. Welcome to contact us!
Pre-sales services, supply customization
We provide customers with the best possible process solutions, technical advice, samples to test, model selection and other consulting service.
In-sale services, provide all aspects of technical support
We design tailor-made training programs for you, including equipment operation, product maintenance and maintenance, troubleshooting, safety operation and other aspects of training.
After-sales service perfectly and timely
We guarantee 10 hours to respond to customer demand, free maintenance during the warranty period, life-long maintenance, timely provision of spare parts, remote diagnosis, regular visits and other services.
Packaging & Shipping
1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials mainly using pearl wool.
3. The outmost is a wooden case with fixed formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for handling and transport.
FAQ
1. Can you supply the relevant documentation?Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.2. What is the average lead time?For samples, the lead time is about 7 days.
For mass production, the lead time is 20-30 days after receiving the deposit payment.The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases, we will try to accommodate your needs. In most cases, we can do so.3. What kinds of payment methods do you accept?You can make the payment to our bank account, Western Union, or PayPal:30% deposit in advance, 70% balance against the copy of B/L.4. What is the product warranty?We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.5. Do you guarantee safe and secure delivery of products?
Yes, we always use high-quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature-sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6. How about the shipping fees?The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most the expensive way. By seafreight is the best solution for big amounts. We can only give you the freight rates if we know the amount, weight, and way details. Please contact us for further information.

---
