Product Details
Product Description
Product Description

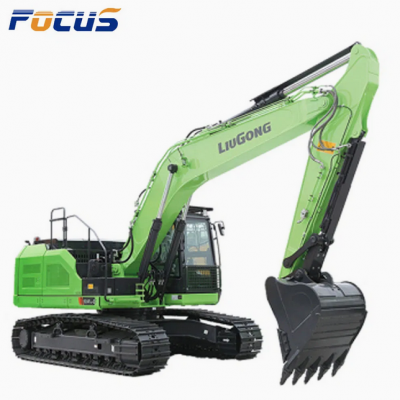

When you deal with large materials, LiuGong's large excavator can provide tremendous power support. Our advanced intelligent power
control system can intelligently match and provide the required power to ensure the machine can work effectively.
We've taken the best from our E-Series machines, combined that with extensive R&D and customer insight to deliver the F-Series, a
new range of state-of-the-art excavators designed with the operator at the heart.
• Reinforced undercarriage components, heavy duty boom and arm allow the excavators to work hard for longer.
• The LiuGong E series excavator features 6 selectable working modes - Power, Economy, Fine, Lifting, Breaker, Attachment that
optimize performance and fuel consumption to your specific conditions.
• Ergonomically designed cab for LiuGong E series excavator, with great visibility, expansive leg room, new multi-function LCD monitor,
suspension seat, provide most comfortable working environment.
• Additional spool in the MCV (main control valve) and the space for PTO pump on the main pump allow for the easy installation of
attachments lines.
• E series cab high-strength ROPS ensures operator protection meeting ISO 12117-2:2008 safety standard. Falling Object Protection
System (FOPS) is optional.
• Inspection parts, filters and water separator are conveniently located.
Detailed Photos
Product Parameters
| Machine weight | 21500kg |
| power | 125kW@1850rpm |
| Standard bucket capacity | 0.9m³ |
| Emission Standards | National Three |
| Type | 6-cylinder in-line, turbocharged, |
|
| Air-to-air intercooling, high-pressure common rail, |
|
| Electronically controlled direct injection |
| Rated power (rated speed) | 124kW@2050rpm |
| Net power (rated speed) | 117kW@2050rpm |
| Maximum torque (torque/speed) | 658/1200N·m |
| cooling method | water cooling |
| Travel speed high/low | 5.3/3.0km/h |
| Swing speed | 10.5rpm |
| Gradeability | 35° |
| Ground voltage | 44.2kPa |
| Stick rated/supercharged digging force (ISO) | 97/105kN |
| Bucket rated/supercharged digging force (ISO) | 140/152.5kN |
| long (shipping status) | 9570mm |
| Overall width (standard track configuration) | 2800mm |
| High (shipping status) | 3140mm |
| minimum ground clearance | 440mm |
| Chassis wheelbase | 3370mm |
| Chassis track gauge | 2200mm |
| Track width (standard) | 600mm |
| Maximum digging height | 9945mm |
| Maximum digging radius | 9870mm |
| Maximum digging depth | 6562mm |
| Maximum unloading height | 7170mm |
>>
