Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand

Product Details

Product Description

Product Description

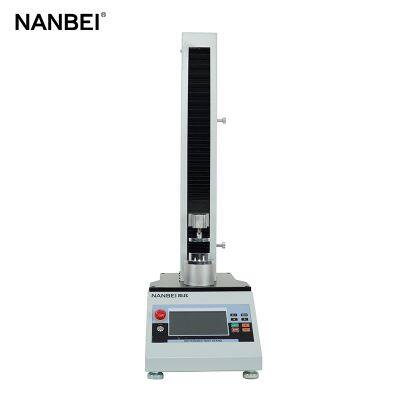

Electric Single Column Vertical Force Gauge Test Stand
Features
1:Electric load, step less speed regulation, gear drive
2:Compact structure, stable drive
3:Simple operation, able to be used with various kinds of clips
Specifications and Parameters
1: Maximum load: 500N
2: Effective travel: 200mm
3: Test speed:15~240 or 60-500 mm/min(choose by customer)
4: Working voltage: 110-220V
5: Outline dimension: 400x320x620mm
6: Net weight: 30-40kg
More models

Model	AEL-A-2	AEL-A-3	AEL-A-5	AEL-A-10	AEL-A-20	AEL-A-30
MAX load	2N	3N	5N	10N	20N	30N
	0.2kg	0.3kg	0.5kg	1kg	2kg	3kg
	0.45L	0.65L	1.1L	2.2L	4.5L	6.5L
Load value graduation value	0.001N				0.01N
	0.0001kg				0.001kg
	0.0001Lb				0.001Lb
Accuracy	+-0.5%
Valid itinerary	400mm
Test speed	1-300mm/min
Operating Voltage	AC:110V/AC:220V
Dimensions	290mm*500mm*900mm
net weight	37kg

Model	AEL-A-50	AEL-A-100	AEL-A-200	AEL-A-300	AEL-A-500	AEL-A-1000
MAX load	50N	100N	200N	300N	500N	1000N
	5kg	10kg	20kg	30kg	50kg	100kg
	11Lb	22Lb	45Lb	65Lb	110Lb	220Lb
Load value graduation value	0.01N		0.1N
	0.001kg		0.01kg
	0.001Lb		0.01Lb
Accuracy	+-0.5%					+-0.1%
Valid itinerary	400mm
Test speed	1-300mm/min
Operating Voltage	AC:110V/AC:220V
Dimensions	290mm*500mm*900mm
net weight	37kg

---
