Tongda Tdga558 Good Price Tongda Sectional Warping Machine

Product Description

Product display and advantages
Main Feature :

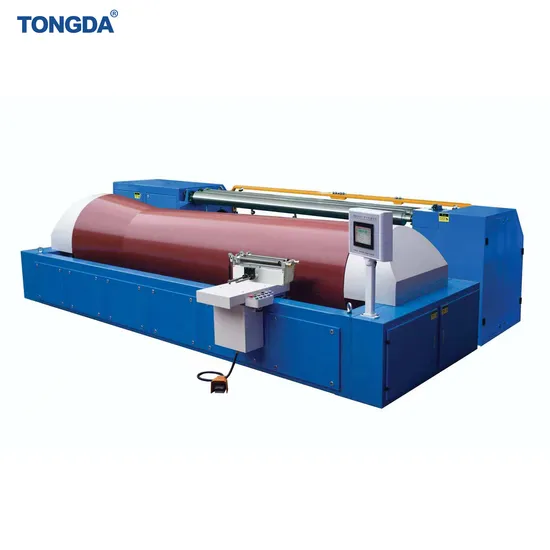

The Sectional Warping machine TDGA558, powered by a servo motor, boasts an intuitive operation system. It features beam tension and braking control via electro-mechanical hydropneumatic during warping, and all production data is stored for your convenience.
Product Details
The traverse of warping operation panel is accurately controlled by servo motor.The staring point setting and stripe setting can be achieved automatically once by pressing the button.
The forward and back movement of warping operation panel is controlled by a step motor,so that the distance between space reed and yarn on drum is consultant and the distance is optional.
To keep the yarn on the drum can gain constant speed when winding and unreeling,the new technology,AC frequency converter speed adjustment device,which controlled by computer to realize the sleepless monitor,is put into practice.
The machine is braked by an electronic-mechanical-hydro-pneumatic device during warping.the beaming tension control adopted extemal steel strip damping,which eliminates the noise and uneven tension problems occured in the traditional clamping type damping.
The optional automatic power control system can be equipped according to the requirements.
Main technical parameters

Working width	2300-5500mm
Beam flange dia.	≤φ1000mm
Warping speed	0~600m/min
Beaming speed	0~150m/min
Brake distance	≤3m( when speed is 100m/min)
Section width	0~600.0mm(standard) as requirement
Traverse displacement speed	0.001~9.999mm/r
Cone angle	9°(1:6.3)
Cone length	1320
Section traverse deviation	±0.01mm
Creel is as your requirements.

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
