Basic Info.
Classification
Single-blade Cutter
Type
Living Paper Cutting Machine
Blade Material
Stainless Steel
Computerized
Computerized
Process
Sheet Cutting Machine
Usage
Packing Paper Machine
Automatic Grade
Automatic
Transport Package
Wodden Case
Origin
Kunshan, Jiangsu, China.
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 100.00cm
Package Gross Weight
1500.000kg
Product Description

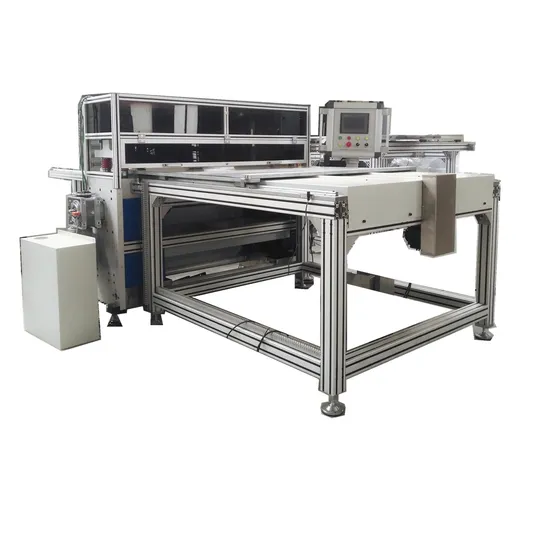

Automatic Aluminum Foil, Copper Foil, Nickle Foil Sheeter Machine
The Sheet cutting machine can be customized, mas feeding width range is from 360mm to 1500mm.
FUNCTIONAL CHARACTERSTICS
Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision
Purpose
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape,
Electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Model: DP-800/600/500/360
Max Feeding Width ( mm ): 800/600/500/360
Main Engineer Power ( w ): 400
Speed ( t/m ): 110
Size ( mm ): 1600*1220*1270
Weight ( kg ): 350
Precision ( mm ): ± 0.05mm
Power: 380V 50Hz
| Touch Screen | MCGS | Beijing |
| PLC | Mitsubishi | Japan |
| Servo drivers | Delta | Taiwan |
| servo-actuator | Delta | Taiwan |
| Cutting motor (DC electric machine) | Shenli | Taiwan |
| | | Shanghai |
| solid-state relay (SSR) 20A | Omron | Japan |
| magic eye (if you do need , please tell us ) | Omron | Japan |
| Unwind shaft | Tongze | Changzhou |
>>
