Die Cutting Machine and Automatic Creasing Cutter Machine for Cardboard

Product Description

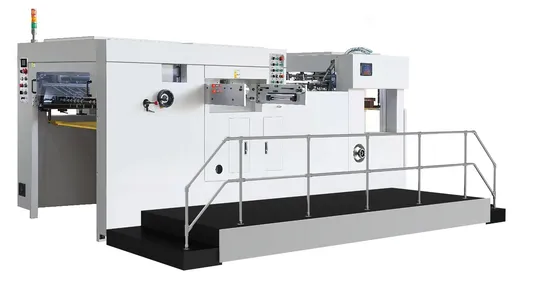

WT-800 High Efficient Die Cutter and Automatic Creasing Machine for Cardboard
Features:
★ Adopting high-speed paper feeding system, it has high paper feeding accuracy, good stability, durability, fast adjustment, and is suitable for thick and thin paper.
★ The paper wall panel is made of casting, which has good stability and is suitable for high-speed use.
★ The overall adjustment structure of the paper feeding table flap frame: precise, fast, and stable.
★The paper feeding table is made of imported high-end stainless steel plate, which is beautiful and durable, with low paper feeding resistance and smoother operation.
★Imported thin paper conveyor belt, sturdy and durable.
★The front and rear transmission wheels and shafts of the main chain of the tooth row are strengthened to ensure rigid, high-speed and stable operation.
★ The external all-round adjustment mechanism of the paper pressing brush in the paper receiving section facilitates and effectively adjusts the paper receiving structure.
★ The paper receiving and blowing control system ensures effective collection of thin paper at high speeds.
★ Servo control ball screw automatic pressure regulating device.
★ Dual oil circuit system ensures fuel supply safety.
★ The main transmission uses a synchronous belt (vertical intermittent), equipped with an overload torque controller.
★ Non stop paper feeding, pre code paper stack, and secondary paper receiving mechanism, reducing auxiliary time and improving work efficiency.
★ Die cut plate frame and bottom plate mechanism, user-friendly design, fast and convenient plate installation and adjustment. (Optional pre installed copy holder)
★ Front gauge, side gauge, and paper feeder fine adjustment device for more accurate paper positioning.
★ Double sheet, skewed sheet, and empty sheet photoelectric positioning control ensures accurate and stable paper, reducing waste.
★ Touch screen human-machine interface, real-time dynamic monitoring and display of operating status, convenient and fast machine adjustment and troubleshooting.
★The circulating cooling oil supply system ensures that the main moving parts of the machine are well lubricated and durable.
★ A timed and quantitative oil supply system ensures sufficient lubrication of other moving parts of the machine, with a long service life.
Main technical parameters:

Model	WT-800
Machine dimensions: length (+pre stacked paper) × Wide (+pedal) × high	4350(+1360)×1900(+1680)×1880 mm
Total Power	16KW
Machine Weight	9T
Maximum sheet size	820*620mm
Minimum sheet size	340*260mm
Maximum die-cutting size	770*600mm
Size of the inner frame of the plate	820*628mm

Die cut steel plate size	826*628mm
Min. Grabbing-sheet Width	8mm
Die cutting accuracy	≤±0.1mm
Max cutting pressure	220T
Maximum die-cutting speed	7200s/h
Max. Feeding Pile Height	1150mm
Max. Delivery Pile Height	1000mm
Main Motor Power	11.5KW

Paper adaptation range

White board paper: 0.1-2 mm/corrugated paper:<4 mm

Ground Plot:
Standard configuration:
1. Paper Feeding Part
1.1 European technical precision feeder head is used for cardboard and corrugated paper. Four suction and four feeding, the suction angle can be adjusted according to the deformation of the paper.
1.2 Double-sided push-pull dual-purpose side gauge. 1.3 The fine adjustment mechanism of the paper feeding table allows for adjustment without stopping the machine.
1.4 Electromechanical double sheet detector.
1.5 The main paper feeding table can be switched without stopping the machine.
1.6 Super wear-resistant polyurethane paper feeding pressure wheel.
1.7 Dual-purpose paper loading table.
1.8 Fine-tuning device for paper feeding time .
1.9 Equipped with one set of supporting paper rods and two sets of supporting boards.
1.10 Optional set of precoded paper mechanism.
2.Main Machine Part
2.1 The pressure-bearing parts are made of high-strength thickened
ductile iron QT500, which has high strength and will never deform.
2.2 Alloy steel crankshaft treated with special technology.
2.3 Super wear-resistant worm gears and worms
2.4Convenient and fast knife template turning device.
2.5 Taiwan high-pressure oil pump circulating oil supply lubrication system.
2.6 High-precision intermittent mechanism.

2.7 Italian pneumatic brake clutch device
2.8 Japanese SMC rotary joint.
2.9 Imported paper gripper chain.
2.10 Pneumatic locking plate device.

2.11 Ultra-hard and high-strength titanium-aluminum alloy paper gripper row.
2.12 Precision pressure regulating mechanism.
2.13 Taiwan PLC and human-machine interface control system.
2.14 A set of additional paper teeth, a die-cut steel plate, a set of template frame combination
3. Delivery Part
3.1 The automatic paper leveling device and the two-way air blowing device for paper delivery ensure that both thick and thin paper can
be collected neatly.
3.2 The delivery section is equipped with a control panel for more user-friendly operation.
3.3 The photoelectricity of the paper delivery ensures that the paper delivery is neat.
3.4 Automatic lifting control system for the delivery table.
3.5 Manual auxiliary take-up
3.6 Main chain protector.
3.7 Anti-return device.
3.8 Equipped with non-stop paper delivery device.
The advantage of our company:
(1) Over 30 years of international leading cutting equipment manufacturer
(2) Applied range including Paper sheet,Plastic sheet,Foil,Honeycomb board,Cardboard,Carbon fiber laminate,Leather,Glassine and Packing sheet ect.
(3)We have a special business mode,which is personalized production.We provide customized service according to each customer's specific way of production with the features of productions.
(4)We have our own warehouse to ensure the supply of spare parts at any time.
(5)Strictly follow ISO quality control, competitive price, fast delivery.
Our Team: Professional TeamQuality Professional ServicesBest After-sale Service
About Our Warehouse:
About Our Exhibition:
8 application areas:
The scope of application covers paper, plastic sheet, gold foil, honeycomb cardboard and cardboard, carbon fiber sheet, leather, cellophane, packaging cloth and other materials.
Our commitment :
Strictly follow ISO quality control, competitive price, fast delivery
We will not take a chance on selling marginal or poorly made products.
Remeber we are ZHEJIANG GUOWEI INTELLIGENT EQUIPMENT Co., Ltd, We are strive to achieve quality best, service best!
You are welcome to purchase our equipment!
QC Team:
More than 10 persons to check the machine's quality, every machine need 1 week to make adjustment, ensure 100% qualitative product.
The Shipment:
We will keep tracking with the container until clients receive it. 40HQ, 40GP, 20FT(LCL, FCL)
The Payment Terms:
30% TT in advance, balance before shipment.
The Delievry Time:
About 25 days after receipt of the deposit.
Why Choose Us? Renowned Global Presence: "Guowei" has established a remarkable reputation both in the domestic and international markets. Our machines have successfully penetrated more than 100 countries across diverse regions, including Europe, South America, Latin America, Southeast Asia, the Middle East, and Africa. This widespread acceptance attests to the reliability and adaptability of our products on a global scale.
Quality Assurance: We are committed to delivering only genuine products of the highest caliber. Our company has a proven track record of ensuring 100% quality compliance. Rigorous quality - control measures are implemented at every stage of production to guarantee that our machines meet and exceed industry standards.
Comprehensive After - sales and Technical Support: Understanding that our customers' needs don't end with the purchase, we offer customized after - sales service and technical assistance. Our team of skilled engineers is readily available to provide on - site support overseas, ensuring the continuous and efficient operation of our machinery.
Cost - effective Solutions: Our machines are designed with longevity, high - speed operation, and precision in mind. Coupled with excellent quality and superior performance, they offer significant cost - saving benefits over the long term. This makes them a smart investment for businesses looking to optimize their operations and reduce expenses.
Direct Manufacturer Advantage: As the direct manufacturer, we are able to eliminate intermediate costs, offering our products at more competitive prices. This not only provides you with a more affordable purchase option but also ensures that you receive the best value for your money.
Responsive Customer Service: We pride ourselves on our prompt response to customer queries. Our dedicated customer service team is always on standby to address any concerns or questions you may have, ensuring a seamless and satisfactory experience throughout our business relationship.
CREATE VALUE FOR CUSTOMER IS OUR TARGET! CONTACT US NOW!
