Hydraulic Hose 4sh/4sp Standard Hose High Pressure Rubber Hose

Product Description

Hydraulic Hose 4sh/4sp Standard Hose High Pressure Rubber Hose
Structure of hydraulic hose high pressure rubber hose:
1.Inner tube:oil resistant synthetic rubber
2.Reinforcement: Four alternating layers of spiraled high-tensile steel wire
3.Cover: black neoprene blend,meets MT98 and GB/T 15907 Flame resistance
4.Temperature range: -40 to 212°F (-40 to 100°C)
5.Applicable standards: GB/T 10544 4SP, EN 856 4SP, MT98 4SP
Features of multispiral hydraulic hose high pressure hydraulic rubber hose 4SP hose:
1.provides superior oil resistance ,heat resistance and aging resistance by using special synthetic rubber
2.provides high pressure resistance and superior impulse resistance
3.provides superior bonding in hose internal.soft use and small deformation under pressure
4.provides superior kink resistance and fatigue resistance
5.provides longer service life
Parameter of multispiral hydraulic hose high pressure hydraulic rubber hose 4SP hose:

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	Bar	psi	Bar	psi	mm	kg/m	metres
10	3/8	9.5	17.5	21.4	450	6500	1800	26000	180	0.78	50
13	1/2	12.7	20.7	23.8	415	6000	1660	24000	230	0.93	50
16	5/8	15.9	24.6	27.4	350	5000	1400	20000	250	1.17	50
19	3/4	19	27.7	30.7	350	5000	1400	20000	300	1.48	20
25	1	25.4	34.9	38	280	4000	1120	16000	340	2.02	20
32	1 1/4	31.8	43.9	47	210	3000	840	12000	460	3.05	20
38	1 1/2	38.1	50.4	53.5	185	2700	740	10800	560	3.52	20
51	2	50.8	63.7	66.7	165	2400	660	9600	660	5.2	20

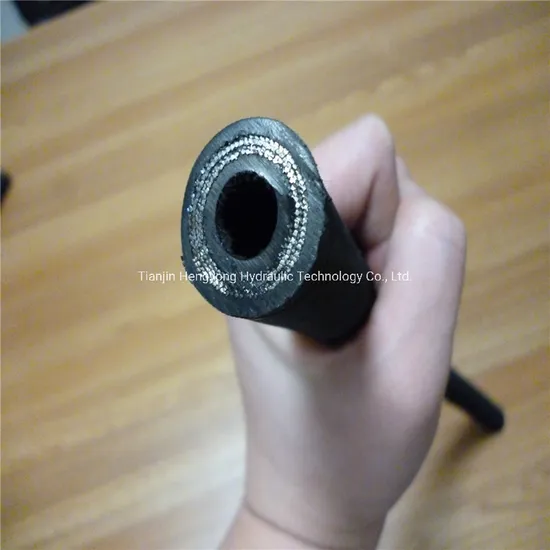

Pictures of the 4SP/4SH Hose:
Pictures of our workshop:
Pictures of the goods package:
Supply other types hose:

1.Steel wire braided hydraulic hose
SAE 100 R1 AT / DIN EN853 1SN
SAE 100 R2 AT / DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100 R16
SAE 100 R17
SAE 100 R5

2.Steel wire spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
SAE 100R15

3.Textile braided hydraulic hose
SAE 100 R3
SAE 100 R6

4.Rubber resin hose
SAE 100 R7 / DIN EN855 R7
SAE 100 R8 / DIN EN855 R8

5.Steam hose
Wire braided steam hose

6.PTFE Hose
SAE 100 R14
How to order:
1.Let us to know the products you need.
2.Negotiated price.
3.After both you and us agree the price, we will send you PI with our company seal with order informaiton and payment information.
4.After get your perpayment, we will delivery the goods within the time we agree in the PI.
5.After we show you the scan of the B/L, you should pay our balance.
6.If you have any problem after you got the goods, you can contact with us at any time you want.

---
