US$7,500.00-24,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Raw Material
Metal, Plastic, Wood, Paper
Knife Classification
Piece Knife Crusher
Knife Roll
Solid Knife Roller
Automation
Semi-Automatic
Computerized
Non-Computerized
Certification
CE, ISO9001:2008, QS
Feeding Port Size
600mm Diameter
Advantage 1
16 Year Professional Sale Service
Cutting Chamber
560*600 mm
Machine Dimension
2700(L) X1260(W) X 2369(H)mm
After Warranty Service
Video Technical Support
Core Components
Bearing, Motor, PLC, Other
After-Sales Service Provided
Free Spare Parts
Shredding Plastic Type
PVC, ABS, PP/PE, PP
Machine Type
Recycling Machine
Price
USD 5000- USD 24000
Specification
2700(L) x1260(W) x 2369(H)mm
Production Capacity
10 PCS/Month
Packaging & Delivery
Package Size
3030.00cm * 1170.00cm * 2430.00cm
Package Gross Weight
2500.000kg
Product Description
Product Description

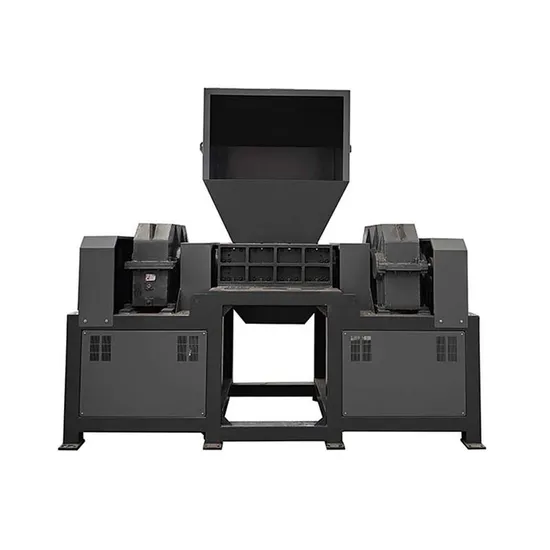

Industrial Double Shaft Plastic Metal Wood Paper Shredder Machine
Multiple purpose waste shredding equipment double shaft shredder SPT600 is featured sophisticated design, robust structure, and high efficient shredding result, two shaft shredders are normally used first stage shredder for materials like truck tires, steel drums, organic waste, and MSW, With a two shaft shredder, once the materials is fed into the cutting chamber, the cutting blades with hooks will grab material and then shear it down to strips. The shreds are directly discharged after cutting without passing through a screen, so the size of shreds is quite random, custom blade widths can match your required sizing. Programmed Reveres rotation of the rotor shaft can prevent damages when overload.
Product Parameters
Model | SPT600 | SPT1400 | SPT1500 | SPT1600 |
Dimension L*W*H | 2700(L) x1260(W) x 2369(H)mm | 3275*1946*2275mm | 3340*1866*2670mm | 3716*2240*2670mm |
Cutting Chamber C/D (mm) | 560*600mm | 810 x 580 | 1200 x 780 | 1310 x 900 |
Rotor Diameter (mm) | | 300 | 400 | 450 |
Blade Quantity | 29 | 25 | 20 | 26 |
Blade Thickness (mm) | 20 | 40 | 50 | 50 |
Main Motor Power (KW) | 18.5+18.5 | 18.5+18.5 | 30+30 | 37+37 |
Weight (KG) | 2700 | 4100 | 6500 | 8700 |
Apllications&Shredding Effect
Certifications
Our Advantages
Modular design scheme to provide customers witha comprehensive integrated destruction system
According to the destruction requirements of customers, design the module selection scheme of equipment, such as the feeding system, crushing system, dust removal system, sorting system, crushing system, magnetic separation system, discharge system, briquetting system etc., and design a mature and perfect destruction and recovery scheme for customers.
High strength shredding blade and shredding system
The core of our products is to shred the storage material, such as WEEEs,Solid waste with metal,plastic,rubber,E-waste into the smallest size. Many materials contain a lot of metal so the requirements for shredding blades are very high standard. Our shredding blades only have H13 grade materials. The shredding baldes are designed according to different crushing materials. And can adapt to high-strength crushing.
Planetary gear reduction system
The planetary gearbox is used to reduce the speed to transrnit the crushing force of high torque, which can tear the machine metal more easily than other gearbox.
Intelligent PLC control system
The PLC electrical control system and industrial control configuration software are adopted as the core control concept.Through the centralized monitoring and management of electrical equipment, as well as the implementation of logical interlocking and protection control of related equipment, the safe, stable and efficient operation of the whole system is ensured, and the automatic control of equipment, starting, stopping, reversing and overload automatic reversing control functions are realized. The production can also be coordinated according to the equipmenton the customer's site.
Heavy duty self-aligning bearing High strength shredding blade
Exhibitions
Company Profile
Hangzhou Supu Business Machine Co., Ltd. is a professional Manufacturer and Exporter for shredder & environmental protection equipment for renewable resources. We published our brand "Gator" for the shredding equipment include Industrial paper shredder ,E-media shredder, single shaft shredder, two shafts shredder, four shaft Shredder ,Baler and Several kinds of solutions ,such as high security data destruction solution, toner cartridges recycling line, printing industry waste discharge solution ,waste PCB recycling solution ,radiator recycling Solution etc, customer customization is available. Company adheres to the "innovation, quality, integrity, service," the concept of development, continuous innovation, is committed to creating international environmental protection products equipment well-known brand.Gator has 18,000 square meter factory ,with ISO 9001, 2008 certification and has own R&D department, get more than 50 patents and products certificated by CE ,TUV ,SGS Certifications ; products exported to more than 95 countries.
FAQ
1. After-sale services
1)7*12 hours technology support online
2)Free product instruction and repair video offer
3)Installation and maintenance services
2. Warranty Time
1) 12 months
2) Free spare part support during warranty time
3.Trade Terms
1) EXW or FOB
2)Payment Type :T/T
