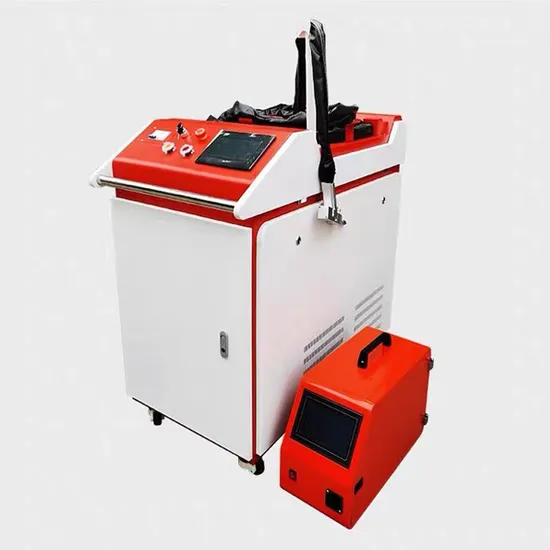

Hand-Held 1500W 1000W 2kw Laser Welding Equipment Machine

US$3,000.00-4,200.00 1 Set (MOQ)

Basic Info.

Model NO.
KW-M
Application
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Automatic
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Laser Mold Welding Machine
Model
Kw-M
Production Name
3 in 1 Fiber Laser Welding Machine
Laser Type
Fiber Laser
Cooling Type
Water Chiller
Auto Wire Feeder
Standard
Control System
Chaoqiang, Qilin
Laser Power
1kw 1.5kw 2kw 3kw
Laser Source
Raycus / Maxx
Laser Head
Chaoqiang, Qilin
Cleaning Width
10~40mm
Color
Blue White
Water Chiller
S&a
Functions
Cutting, Cleaning, Welding
Working Mode
DOT/Line/Circle
Spot Size (mm)
0.2-5mm Adjustable
Transport Package
Wooden Box
Specification
1300*600*1100mm
Trademark
KNOPPO
Origin
China
HS Code
8456110090
Production Capacity
500 Sets/Month

Packaging & Delivery

Package Size
140.00cm * 70.00cm * 120.00cm
Package Gross Weight
220.000kg

Product Description

Product Description
APPLICATION :
3 In 1 Handheld laser welding machine can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, including copper - brass, titanium - molybdenum, titanium - gold, nickel - copper, and so on.
3 In 1 Handheld laser welding machine is widely used in the kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, battery manufacturing, craft gifts, household and other industries.
Also can clean rust , paint , coating and oil etc on metal .
Detailed Photos
Raycus Laser Source and S&A Water Chiller
Raycus is largest manufacturer of laser source in China , can weld carbon steel , stainless steel and aluminium etc . Good quality
and long life . Suitablef for 24 hours continuous working.
Relfar Laser Welding Head
With hot temperature alarm and double protections lens , very sale . small and light , easy to operation.
Relfar Control Sytsem
Different welding or cleaning parameters is saved on system , when you weld metal , you need only choose it . Also support multi languages , such as English , Polish , Spainish , Russian , Korean , Japanese , Portugal etc .

France Schineider Electric Parts
European CE standard , good quality and long lifetime .
How to change welding to cleaning ?
laser cleaning parts ( nozzle and lens ) will be sent with machine , you need only change welding nozzle and lens to cleaning nozzle and lens . then change welding mode to cleaning mode on system .

Product Parameters
No.
Model
KW-M
I.Laser source
Raycus / MAX
Raycus / MAX
Raycus / MAX
1.
Output Power (w)
1000W 1500W 2000W 3000W
2.
Center wavelength
1080nm ±5
3.
Fiber Cable length
10m
II.Water Cooling
1.5P
2P
2.5P
III.Laser head
1


Spot size (mm)

1.5/1.8/2.0 (XINGHONG)
0.2-5mm adjustable (Relfar / Qilin)
0-4mm adjustable (WSX)
2


Working Mode
"O"(XINGHONG)
dot/line/circle (Relfar / Qilin)
"Z"(WSX)
3
Protective lens
D20*2
4
Auto Wire-feeder
Standard
IV. Gas
N2/Ar
V.Total Power Consumption
7.5KW
8.5KW
10KW
VI.Voltage
220±20% VAC 50/60Hz
380±20% V AC 50/60Hz
VII.Dimension (CM)
62.5*174.6*109
62.5*175.6*124
VIII. Cleaning Width 10~40mm

Packaging & Shipping
Wooden box package , safedelivery


Certifications
Our fiber laser welding machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Company Profile
Knoppo Automation is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 laser cutting systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.
The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine , laser welding machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.
