Packaging and Color Printing Paper Machine, White Top Liner Paper Coating Machine

Product Description

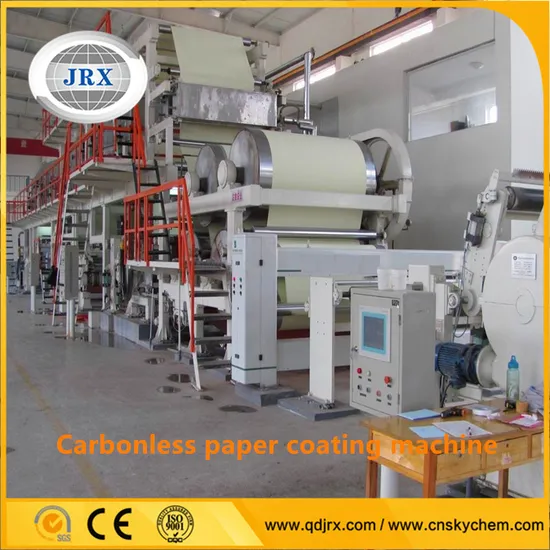

2600mm duplex board paper coating machine production line
1. Typical applications and features:
1) Widely used in packaging and color printing like FedEx Pak, hand bags, wine packages, shoe boxes, toothpaste boxes, cosmetics outer packaging or whatever packaging the item may be suitable for.
2) Features: Single-side coated white have high whiteness coating is exquisite, coated surface is good in Ink absorbency, smoothness, printing gloss, water-proof, etc.
2.2600mm Coating production line:
It's applicable for paperboard that gram of base paper is 120- 500G/M² To do single-sided coating. The total amount of coating 30- 70G/M², design speed 80m/min.
Machine configuration: One set of hydraulic paper holder, two sets of blade coater, 6 groups of oven, two sets of dry feed network, one set of double roll soft calender, one set of variable frequency drive part, one set of winders, one set of coating preparation, one set of rewinding machine.
3, Production process
Paper Holder Device- Once Blade Coating- Once Oven Drying(2.5m× 3 groups )- Dry Network Feed- Twice Blade Coating- Twice Oven Drying- (2.5m× 3 groups)- - Dry Network Feed- 900Coherent states cylinder -Double roll soft calender- Paper reeling machine -Rewinding Machine
4.

The main technical parameters and Performance
Width of base paper:	2650mm
Width of net paper:	2600mm
Coating Weight:	(max)35_50G/M²
Solids Content:	(max)60%
Design Speed:	80m/min
Yield Production:	55-65T/D(250G/M2)
Work Speed:	60_100m/min
Steam heating:	0.7MPa
Pneumatic control:	0.8MPa
Oven working temperature:	120-150 Celsius degree
Threading methods:	Dry net automatic threading
Electric control:	AC variable frequency drive distribution

Our company can produce many kinds of duplex board coating machine include duplex board coating machine. Our products inlude duplex board coating machine have high quality and very good fame. Company Information
We are QINGDAO JIERUIXIN MACHINERY AND TECHNOLOGY CO.,LTD.
,which company is mainly working on paper coating machine ,paper making machine and related technology. Through more than 10 years effort , Besides the machine self ,we have our own chemist and prefer to supply chemical ,formulation ,technology and other suggestion to customers.Then our formulation will match our machines ,and get the best quality paper for them. Now Our company had been one of the famous paper coating machine manufacturer in China and our coating machine and technology had been exported to Iran ,Egypt ,Mexico ,Australia , India and etc.
Our Services:
♦. Reasonable suggestions for selection of equipment.
♦. Provide detailed description and assembly drawing , to make you more aware of the device's ability to work.
♦. Engineers on-site equipment installation and commissioning.
♦. Train and teach your worker to operate the paper machine,
♦. Professional technical guidance and technical support during your production, make sure the device's work properly and production.
♦. Equipment modification and updating.
♦. We will testing installation machine in the factory workshop , to ensure safety and quality.
♦.Supply Carbonless paper and Paper coating chemicals ,formulation ,technology and other suggestion to customers.
♦.After-sales service for one year: equipment maintenance guidance.
♦.Provide Turnkey projects.
More products ⇓These are our main paper coating machine as follows, any other requirments, please feel free to contact with us. We accept customized products at the basis of complying with the requirements of technical specification. Very glad and look forward to your inquiry.
Welcome to contact us.
5. Delivery Time&Guarantee
90 days after receiving the deposit
Guarantee: One year
6. Our Sales Service:
Engineer is available for exporting machine installing and testing running, and supply the technical support for customer worker training Some Easy damageable spare part within the guarantee is free for customer, but the delivery fees is on customers account.

Our serve: Your satisfaction is our service purpose
1	Reasonable suggestions for selection of equipment
2	Professional product's design to meet your equipment needs.
3	Provide detailed configuration of the equipment instruction and equipment assembly drawings, to make you more aware of the device's ability to work.
4	Transportation Service.
5	Engineers on-site equipment installation and commissioning
6	Provide training for your employees
7	Professional technical guidance and technical support during your production, make sure the device's function properly
8	Equipment upgrade & remould
9	Engineer can go to your factory when you need
10	Guidance of maintenance for equipments

---
