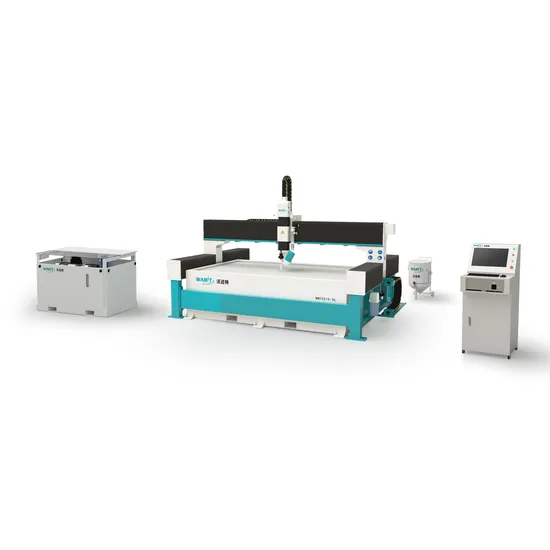

5 Axis High Pressure Waterjet Tile Cutter Countertop Glass Metal Stainless Steel Cutting Machine with Drilling Function

Product Description

Product Description
5 axis High Pressure Water Jet Tile Cutter Countertop Glass Metal Stainless Steel Cutting Machine with drilling function our direct drive pump can save your 60%-70% electricity cost! Can nearly cut all material:
Alloy Steel
Aluminum
Armor Plate
Brass
Boron
Bronze
Cast Iron
Cobalt
Copper
Exotic Alloys
Hastalloy
Hardened Steel
Hot Rolled Steel
Inconel
Kevlar
Magnesium
Mild Steel
Nickel AlloysStainless Steel
Steel Alloy
Steel Hardened
Steel Hard Rolled
Steel Mild
Steel Tool
Tantalum
Tin
Titanium
Tungsten
Wrought Iron
Zinc
Acrylics
Ceramics
Composites
Foam
Fiberglass
Kevlar
Mylar Laminates
Nylon
Plastics
Plexiglass
Porcelain
PVC
Rubber
Thermoplastics
Urethane
Vinyl
Armor Plate
Bullet Proof Glass
Glass,Mirror Glass
Ceramic Tile
Granite
Limestone
Marble
Porcelain
Terrazzo
Hardwood
food
Machine models:

		WMT200 1010	WMT200 1212	WMT200 1515	WMT200 2515	WMT200 2540	WMT200 2560
Platform size	X-axis	1200mm	1400mm	1700mm	2700mm	2700mm	2700mm
	Y-axis	1200mm	1400mm	1700mm	1700mm	4200mm	6200mm
Cutting stroke	X-axis	1000mm	1200mm	1500mm	2500mm	2500mm	2500mm
	Y-axis	1000mm	1200mm	1500mm	1500mm	4000mm	2000mm
	Z-axis	150mm	150mm	150mm	150mm	150mm	150mm
Cutting accuracy		±0.1mm
Repeated positioning accuracy		±0.05mm
Driving mode		Ac servo
Maximum operating speed		50000mm/min

		WMT200 3015	WMT200 3020	WMT200 3112	WMT200 3515	WMT200 4020	WMT200 6020
Platform size	X-axis	3200mm	3200mm	3300mm	3700mm	4200mm	6200mm
	Y-axis	1700mm	2200mm	1400mm	1700mm	2200mm	2200mm
Cutting stroke	X-axis	3000mm	3000mm	3100mm	3500mm	4000mm	6000mm
	Y-axis	1500mm	2000mm	1200mm	1500mm	2000mm	2000mm
	Z-axis	150mm	150mm	150mm	150mm	150mm	150mm
Cutting accuracy		±0.1mm
Repeated positioning accuracy		±0.05mm
Driving mode		Ac servo
Maximum operating speed		50000mm/min

Advantages:

The X/Y axis uses a new labyrinth protection.

Japan River Valley automatic lubrication system.

Internal components adopt the German Schneider brand.

Absolute value motor, no zero detector, with power off memory function.

International brand AC servo drive power supply and motor.

60000psi (420mpa) intensifier pump
1.Type of pressurization is hydraulic. (The water is pressurized by using the fluid pressure intensification principle).
2.Max. oil discharge is 90 L/min
3.Max. water discharge is 3.8L/min
4.Max. diameter of orifice is 0.33mm
5.Max. operating pressure is 420MPa(60000 psi)
6.Continuous operating pressure is 350-380MPa
7.Power requirement : 37KW, 3 phrase, 380V/50HZ, can do 220V/415V.
8.Type of shift is electronic
9.Maintenance free accumulator is originally imported from TAIWAN.
10.Intensifier assembly is imported from USA
11.With SIEMENS motor and SIEMENS PLC and the motor is variable pump so that can reduce using cost.
12.all electric components are Schneider brand.
abrasive sand feeding system
Abrasive sand feeding system
No need electronic control, simple operation, reliable, maintenance-free
Can supply the cutting sand quantity
Need less than 0.2Mpa compressed gas pressure. 220KG Sand can be used for 8-10 hours.

CNC controller

CNC control, apply 17 inch LCD
Adopt specialized NCStudio water jet cutting software, have autosave function for next operation.
Apply SIEMENS PLC instead of relay, buttons are Schneider can provide ITALY Imported ECS software which support more than 15 languages

60000 psi direct drive pump


oil chiller


cnc controller


AC 5 axis


water supply system


abrasive sand removal system

Cutting Speed

Material	Specification	Speed(mm/min)
		60000psi Servo direct drive pump	60000psi Hydraulic intensifier pump
Carbon steel plate	10mm	330	270
	12mm	280	220
	14mm	240	180
	16mm	200	140
	20mm	170	110
	22mm	140	85
Aluminum plate	12mm	800	600
	30mm	200	160
Glass	5mm	2000	1600
	8mm	1800	1400
	10mm	1500	1100
	12mm	1200	900
	14mm	1000	700
Ceramic tile	12mm	2000	1500
	14mm	1400	900
Microcrystal stone	16mm	1200	900
Marble	25mm	1000	800
	30mm	800	600

if use our 30kw 63000psi second-generation direct drive pump , the cutting speed will be as follows: the cutting speed will be twice higher than with 420mpa intensifier pump.
MODEL :WMT SDD II 40
MAX PRESSURE :435MPa
Continuous working pressure :370-380MPa
Max orifice diameter :0.43mm
Flow rate :5.6 l/min
Inlet water pressure :0.4MPa
Motor power :30KW
Dimension :1800mm X 900mm X 1200mm
Booster and piping system (high-pressure cylinder, plunger rod, high-pressure seal, low-pressure seal, high-pressure piping, check valve, etc
Dual-row filtration system (5 Micron, 1 micron, in series)
Fully automatic servo control system, output pressure control mode
Intelligent start-stop function
Automatic shutdown for overpressure and automatic protection for underpressure
Power supply:380VAC, 50Hz , 3 Phase

material	thickness(mm)	Cutting pressure	Max cutting speed (mm/min)
Carbon steel	6	370	850
	8	370	650
	10	370	550
	16	370	300
	20	370	220
	30	370	140
	75	370	40
	100	370	22
	125	370	10
Titanium alloy	10	370	800
	20	370	260
	45	370	100
	100	370	26

aluminum	6	370	2500
	8	370	1800
	20	370	650
	30	370	350
	40	370	260
Stainless steel	6	370	850
	8	370	650
	13	370	500
	16	370	300
	56	370	45
glass	5	370	7000
	8	370	3000
	12	370	1600
	15	370	900
	19	370	650

Packing&Shipping
soft packing in one 20'FCL container
After Sales Service
We have exported to more than 20 countries yet, and now have agent in America, Russia,South Africa,Ecuador,UK,Argentina,Chile,Mexico,Austrilia,Saudi Arabia and other GCC countries, Malaysia,Vietnam.

we can arrange engineers go to customer's factory if no agents in their country.

reback time: not more than 12 hours.
Customer Photos
Company Introduction
We are professional supplier of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine. Our factory is located in JINAN city, SHANDONG province, China. we have 420Mpa intensifier pump, 80KPSI and 90KPSI intensifier pump , 60KPSI direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one- year warranty of main parts, whole-life after-service for the entire machine.We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary , Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.we now have after-service department in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam.We takes "customer first, reliable quality, honest and faithful, good team work" as our consistent business principle. With the strict management and continuous improvement, we can supply the best way of cutting by water jet. please don't hesitate to contact us if you want to know more!


FAQ
1. Are you manufacturer or trading company?
We are manufacturer of water jet cutting machine in JINAN city, Shandong, China.
2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy.
3. What's your CNC water jet cutting machine's max. cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?
Generally speaking is 30 days. if have stock, 7-15 days.

---
