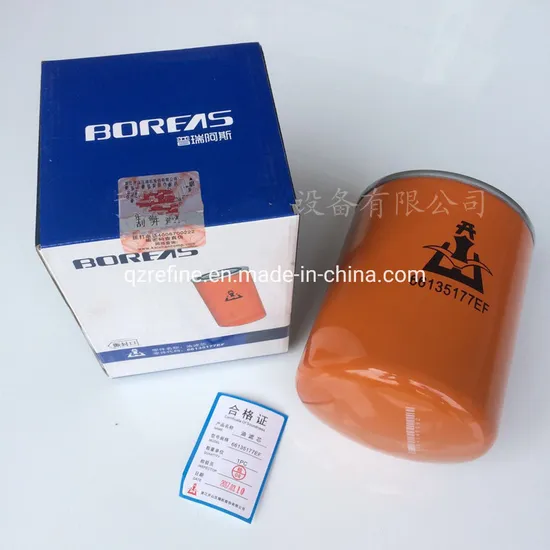

66135177EF Oil Filter for Kaishan 55KW BK Screw Compressor

Product Description

Filter Element for Air Compressor

Advantages of the Filter for Compressor:

1.High-efficiency oil-air seperator, make the oil-content lower to 3PPM,
2.High-efficiency oil filter, filtering the impurity of lubricating oil, supplying purity lubricating oil for compressor head and bearings.
3.High-efficiency air filter, filtering the dust of air intaked by compressor and protect the head and bearings from hurt.
4.Reliable quality makes you have a higher-efficiency compressor working.

screw compressor	Motor Power	Spare Parts	Code No.
LG-5.0/8	30kw/40hp	air filter	56006165338T
LG-4.5/10		core of air filter	56006165338
LG-3.7/13		core of oil separator	55170200230
		oil filter	66094212
LGB-6.0/8	37kw/50hp	air filter	56006165338T
LGB-5.6/10		core of air filter	56006165338
LGB-4.8/13		core of oil separator	55170200230
		oil filter	66094212
LG-6.0/8G	37kw/50hp	air filter	56006158376T
LG-5.6/10		core of air filter	56006158376
LG-4.8/13		core of oil separator	55170200230
		oil filter	66094212
LG-7.5/8	45kw/60hp	air filter	56006165338T
LG-6.9/10		core of air filter	56006165338
LG-6.0/13		core of oil separator	55170200305
		oil filter	66094212
LG-7.5/8G	45kw/61hp	air filter	56006158376T
		core of air filter	56006158376
		core of oil separator	55170200305
		oil filter	66094212
LGB-10/8	55kw/75hp	air filter	56010194401T
LGB-8.7/10		core of air filter	56010194401
LGB-7.5/13		core of oil separator	55220273305
		oil filter	66135177
LG-10.5/8G	55kw/75hp	air filter	56010200350T
LG-8.7/10		core of air filter	56010200350
LG-7.5/13		core of oil separator	55220273305
		oil filter	66135177
LGB-13/8	75kw/100hp	air filter	56012230365T
LGB-12/10		core of air filter	56012230365
LGB-10/13		core of oil separator	55220273360
		oil filter	66135177
LG-13/8G	75kw/100hp	air filter	56020300440T
LG-12/10G		core of air filter	56020300440
LG-120/13G		core of oil separator	55300355305
		oil filter	66135302

Maintenance manual and schedule for screw compressor accessories
Items	maintenace action	everyday	everyweek	500h	1500h	2500h	6000h	12000h	18000h	30000h
				every month	every season	half year	1 year	2 years	3 years	5 years
The indicator light panel	check any unusual indicator light	check and adjust
Discharge temperature	check if temperature in 70-95 degree level	check and adjust
condensed water in oil barrel	drain water	check and adjust
oil level	check	check and adjust
joint hose for air suction	check/replace					check and adjust
pipeline(rubber/metal pipe)	check/replace	check and adjust							replace
pipeline joint	check if any leak						check and adjust
cooler	clean		clean						check and adjust
cooling fan	clean		clean
air filter for air suction	clean/replace		clean			replace
pre-filter net	check/clean		clean
Electromagnetic switch contact	check/clean		clean
electrical equipment connect	adjust			check and adjust
belt and belt pulley	adjust/replace			check and adjust		replace
oil filter	replace			for new machine		replace
main motor	inject bearing grease				check and adjust
shaft seal for screw head	check/replace					check and adjust
screw compressor oil	inject/replace			for new machine		replace
oil separator	replace					replace
electrical insulation	check circhurt by multimeter						check and adjust
thermal control valve	check/replace						check and adjust
air suction valve	check/clean/replace						check and adjust
min-pressure valve	check/clean/replace						check and adjust
safety valve	check/replace						check and adjust	replace
discharge solenoid valve	check/clean/replace					check and adjust
pressure sensor	verify check						check and adjust
temperature sensor	verify check						check and adjust
compressor bearing	check/replace							check and adjust		replace
note:
1)If working condition: far away from dust, apply original engine oil, ambient temperature below 45ºC,lifecycle maxly reachs 3000h for oil filter, air filter and oil separator.
2)Lifecyle for above items will only reach as 60% as normal if working under hard condition.
3)Customer who fails to apply our original engine oil, we will not provide warranty.
4)No matter by hour or maintenance period, maintenance should be done if either one reachs firstly.
5)remark: this schedule is only for reference please adjust it according to actual working.

About Kaishan Company:
1- Established in 1990 ,Specialized in this line more than 20 years.
2- National Free-inspection Product
3-Have advanced machining centers, automatic production line shape and heat treatment
equipment etc 500 sets from the United Kingdom, United States, Japan, Germany ,
4-Exported to Australia/ Mongolia/ Japan/ South-Africa etc
FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.

---
