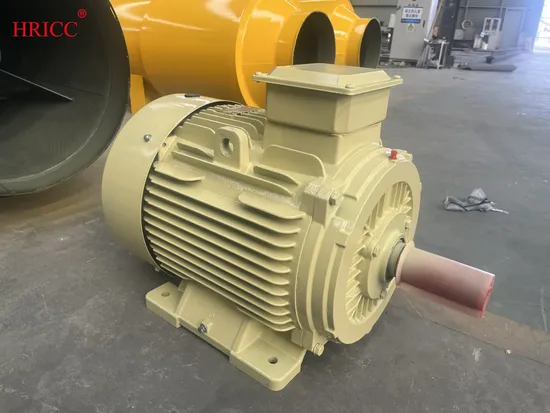

11 Kw, 15 Kw, 18.5 Kw, 22 Kw Three Phase Motor Induction Engine Asynchronous Motor

Product Description

Product Description
Product Parameters

mode	power	Rated current	Speed	efficiency	Rated torque	Stall torque Rated torque	Locked Rotor Current rated current	Maximum torque Rated torque	noise
Type	kW	A	r/min	Eff.%	N.m	Tst TN	IstTN	T maxTN	dB(A)
YBX3-80M1-2	0.75	1.72	2880	80.7	2.5	2.2	7	2.3	67
YBX3-80M2-2	1.1	2.43	2875	82.7	3.7	2.2	73	2.3	67
YBX3-90S-2	1.5	3.22	2900	84.2	4.9	2.2	7.6	2.3	72
YBX3-90L-2	2.2	4.58	2895	85.9	7.3	2.2	7.6	2.3	72
YBX3-100L-2	3	6.02	2895	87.1	9.9	2.2	7.8	2.3	76
YBX3-112M-2	4	7.84	2910	88	3.1	2.2	8.3	2.3	77
YBX3-132S1-2	5.5	10.6	2940	89.2	17.9	2	8.3	2.3	80
YB3-132S2-2	7.5	14.2	2940	90.1	24.4	2	7.9	2.3	80
YBX3-160M1-2	11	20.6	294	91.2	35	2	8.1	2.3	86
YBX3-160M2-2	15	27.9	2945	91.9	48.6	2	8.1	2.3	86
YBX3-160L-2	18.5	34.2	2950	92.4	59.9	2	8.2	2.3	86
YBX3-180M-2	22	40.5	2960	92.7	71	2	8.2	2.3	88
YBX3-200L2-1	30	54.9	2960	93.3	96.8	2	76	2.3	90
YBX3-200L2-2	37	67.4	2960	93.7	119	2	7.6	2.3	90
YBX3-225M-2	45	80.8	2965	94	145	2	7.7	2.3	92
YBX3-250M-2	55	98.5	2970	94.3	177	2	7.7	2.3	93
YBX3-280S-2	75	134	2975	94.7	241	0.8	7.1	2.3	94
YBX3-280M-2	90	160	2970	95	289	1.8	7.1	2.3	94
YBX3-315S-2	110	195	2975	95.2	353	0.8	7.1	2.3	96
YBX3-315M-2	132	234	2975	95.4	424	1.8	7.1	2.3	96
YBX3-315L1-2	60	279	2975	95.6	514	0.8	7.2	2.3	98
YBX3-315L2-2	200	349	2975	95.8	642	1.8	7.2	2.3	98
YBX3-355S1-2	185	323	2980	95.7	593	1.8	7.2	2.3	98
YBX3-355S2-2	200	349	2980	95.8	641	1.8	7.2	2.2	98
YBX3-355M1-2	220	383	2980	95.8	705	1.8	7.2	2.2	100
YBX3-355M2-2	250	436	2980	95.8	801	1.6	7.2	2.2	100
YBX3-355L1-2	280	488	2980	95.8	897	1.6	7.2	2.2	100
YBX3-355L2-2	315	549	2980	95.8	1009	1.6	7.2	2.2	100
YBX3-355L3-2	355	619	2980	95.8	1138	1.6	7.2	2.2	104
YBX3-355L4-2	375	654	2980	95.8	1202	0.6	7.2	2.2	104

Application scenario
Company Profile
Manufacturing process
Customer Photos
FAQ Q1:Are you a factory or trading company?A: We are established in 2009, is a large-scale integrated enterprise of engineering equipment research and development.
Q2:Where is your factory located? How can I visit there?
A: Our factory is located in Zibo City, Shandong Province, China.Contact us ahead before you go visit,then we can fully arrange the schedule and meet you.Welcome to visit us!
Q3: How does your factory do regarding quality control?
A: Quality is the most important principle. Hurric people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q:ls the product customized?
A4:Varous types can be customlzed.
Q5. What is your warranty?
A.Our warranty is 12 months after received . During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure.continuous safe and high-quality equipment operation.
Q6. What are your terms of payment?
A. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
B. 100% IRREVOCABLE L/C AT STGHT.
Q7 . What products do you produce?
A. Industrial fan, crusher, generator and other mining machinery and equipment.

---
