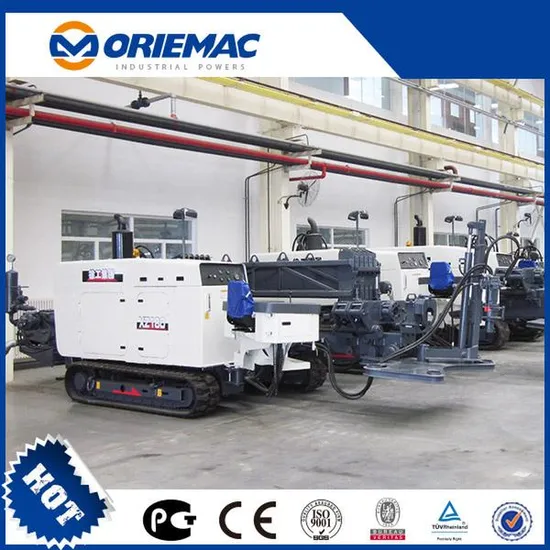

Chinese New HDD Drilling Machine Xz180 Rotary Drilling Machine

Product Description

Chinese new HDD Drilling Machine XZ180 Rotary Drilling Machine
1. 97kw CUMMINS engine
2. Pipe length: 3m
3. Pipe diameter: 600mm
New HDD Machine/HDD Drilling Machine XZ180
Technical Features of XZ180
Dual speed power head: Drilling and pulling at low speed ensure smooth operation; The power head can slide at faster speed to reduce the auxiliary time and improve work efficiency during the assembly/disassembly of drilling stem with empty load.
Rubber track: The rubber track has minor influence on the road, lawn, and scenic spot.
Float clamp: The patented float clamp can effectively extend the service life of the drilling shaft.
Automatic assembly/disassembly: The drill stem can be mounted and dismounted automatically, which improves the work efficiency, reduces the work intensity and thus reduces the number of work staff.
Automatic anchoring: Through hydraulic pressure drive, the cylinder and low speed large torque motor controls the push/pull of the drill stem, and it's simple and convenient to operate.
Rotatable control panel: It widens the field of view and reduces operator fatigue.
Simple to operate: The rotation and push/pull of the power head is controlled separately, and it's simple and convenient to operate. The operator can master the operation skills through short-time training. Model XZ180

Engine		CUMMINS
Rated power	kW	97
Max.pullback/thrusting	kN	180/180
Spindle torque(max)	N.m	6000
Spindle speed	r/min	0-140
Backreaming diameter	mm	Ø600
Tubing length(single)	m	3
Tubing diameter	mm	Ø60
Entry angle	°	10-22
Mud flow rate(max)	L/min	250
Mud pressure (max)	bar	80
Overall weight	kg	10000
DIMENSION (LxWxH)	mm	6400×2270×2340

---
