Electronic Locker Controller 24 Channels with TCP/IP Open Protocol of Modbus (AL2445)

Product Description

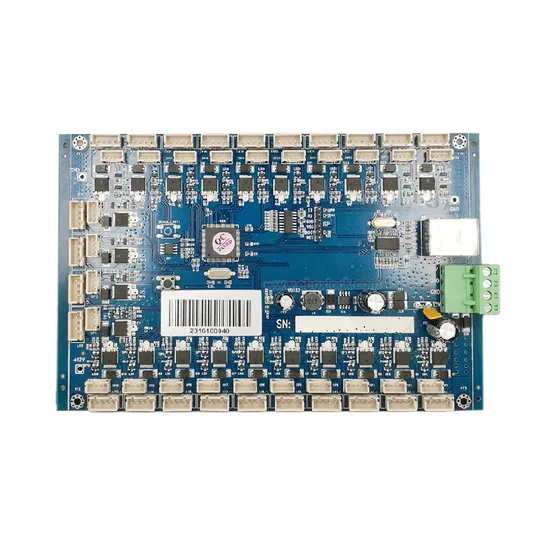

Electronic Locker Controller AL2445 is a 24 channels control board that performs lock control in electronic locker system. It is with TCP/IP interface to integrate PC server, terminal or master controller. The slave controller operates under the control of the main controller and provides output to the locks, meanwhile provides report of the door status to the main. A single slave controller can control up to 24 locks, with extension board by RS485 interface, the system is able to control 485 locks. It is suitable for smart parcel lockers and vending locker machines.
Features Interface to PC via TCP/IP Supports up to 24 electronic locker locks Extendable up to 485 channels Allows door status reporting Power supply of locker locks Allows control from Raspberry Pi or PC
Specification Operation Voltage 12-24VDC Power Consumption 30W Max Load Per Channel 4A Frequency 13.56MHAZ Communication rate 9.6Kbps Working Temperature -10C ~ +60C Working Humidity 10%-90%R.H Atmospheric pressure 86kpa-106kpa Dimensions LxWxH 200mm*170mm*32mm Gross Weight 0.5kg
Certificate: CE&RoHs

Please contact us for user manual, protocal and app for intergration of locker system.
Applications The Electronic Parcel Delivery System is ideal for various applications as following: Electronic Parcel Lockers Parcel Delivery Lockers Biometric lockers Vending lockers Refrigerated Electronic Locker System RFID lockers Bar code lockers Fingerprint lockers Free access lockers Rental lockers
Order Particular NO. Particular 1 AM8046 master controller 2 AL2445 slave controller 3 15.6 LCD screen 4 IR detection module 5 Barcode scanner module 6 Electronic cabinet lock 7 4x4 matrix keypad About Us
Dajiang is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications.
Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software. With professional security control solution, Dajiang locks and controllers is ideal for areas of parcel locker, smart lockers, vending lockers, cash drawers; post mailboxes; medicine and archive cabinets; Key Cabinets and mailbox.
Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information.

---
