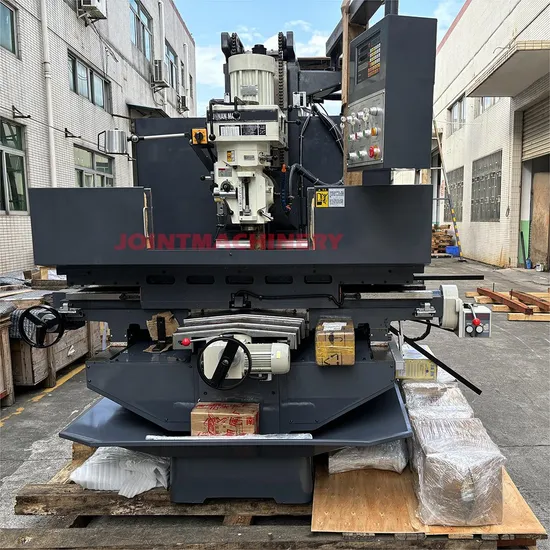

3 Axis High Rigidity Turret Milling Machine Metal Component Milling and Boring Machine

Product Description

Recombination Precision Vertical Horizontal Milling Machine
√ Bed milling machine, high rigidity and large bearing capacity.
√ Taiwan original precision milling head, ball screw, NSK P4 precision spindle bearing, spindle tolerance 0.002mm.
√ Three axes adopt precision ball screw, with run fast and high accuracy in positioning.
√ Suitbale for heavy and large workpiece (800-1000KG) processing.
√ Bed structure, Meehanite cast iron and high rigid structure design.

1. WORKTABLE
Our worktable exemplifies excellence in craftsmanship, featuring ultra-audio quenching, precision grinding, and meticulously scraped guides for ultimate smoothness. Expand its multifunctionality with a rotary table.
2. TURRET MILLING HEAD
Our state-of-the-art turret milling head is designed to swivel 45° forward-backward and rotate 90° left-right, facilitating versatile milling for complex angles with ease.
3. SPINDLE
Equipped with a high-precision R8/NT30/NT40 spindle, our machine delivers an extraordinary spindle runout of just 0.003mm, ensuring unmatched precision and reliability.
4. X/Y/Z AUTO FEED
Transform your workflow with our automatic X/Y axis feed and electric Z-axis lift, dramatically enhancing efficiency and simplifying operations.
5. DRO
Achieve superior precision with our customizable 2-axis or 3-axis DRO, tailored to your specific requirements to enhance overall performance.
3 Axis High Rigidity Turret Milling Machine Metal Component Milling and Boring Machine

Model				B600
Table size			mm	1370*405
Travel		X axis	mm	1000
		Y axis	mm	350
		Z axis	mm	640
Travel of spindle quill			mm	150
Maximum distance from spindle nose to table			mm	760
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	58-3000
		60HZ	rpm	70-3600
	Rotation speed (Variable speed milling head)	50HZ	rpm	58-3250
		60HZ	rpm	70-3900
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt angle		Forward and Backward	°	0°
		Left and Right	°	±90°
Dimension			mm	2000*2230*2150
Weight			kg	2800

Shenzhen Joint Machinery Co., Ltd. is recognized as a global leader in the industry, renowned for our expertise in manufacturing and exporting CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. Our extensive range of premium milling and grinding machines demonstrates our unwavering commitment to delivering exceptional machines and unrivaled services worldwide. By incorporating cutting-edge Taiwanese and German technologies, our production processes deliver superior quality and reliability, adhering to the highest industry standards. Celebrated for their superior performance in precision, stability, and dependability, our machines adeptly handle a diverse array of complex machining tasks. Our esteemed products enjoy international acclaim, penetrating markets throughout Asia, Europe, South America, North America, and beyond. We are committed to nurturing enduring partnerships with clients worldwide, consistently generating significant business value together.

---
