Paper Lid Making Machine for Ice Cream

Product Description

Introduction:
LB-D 125 PAPER LID MACHINE COVER FORMING MACHINE IS DESIGNED FOR THE FOOD PACKAGING INDUSTRY AND IS DEDICATED TO PROVIDING EFFICIENT, ACCURATE AND HYGIENIC PAPER COVER SEALING SOLUTIONS. THE EQUIPMENT ADOPTS CUTTING-EDGE MECHATRONICS TECHNOLOGY AND IS SUITABLE FOR A VARIETY OF ICE CREAM CONTAINERS. IT CAN QUICKLY COMPLETE THE PAPER COVER CUTTING, FORMING, LAMINATING AND PRESSING PROCESSES TO ENSURE BOTH SEALING AND AESTHETICS, MEETING THE STRINGENT PRODUCTION NEEDS OF GLOBAL HIGH-END COLD DRINK BRANDS AND OEM FACTORIES.
Product Made from Machine:
Main Technical Parameters:

Model	LB-D 125
Paper Diameters	60-125mm
Material	PE Coated
Paper Raw Material	Thickness 180-400g/min
Production Capacity	65-75pcs/min
Power	6kw
Power Supply	220V/380V, 50Hz
Machine Weight	2800Kgs
Air Compressor	0.4Mpa, 1Cbm/Min
Packing Size	2.3X1.7X1.9M
Electrical and Pneumatic Components Configuration	Low Voltage Electrical Components	France Schneider
	Touch Screen	Enview, Taiwan
	Controller	Inovance
	Encoder	Korea Otto Nix
	Button/Switch	Korea Otto Nix
	Main Motor	TNL-Taiwan
	Inverter	Inovance
	C1Sensor	Made in China
	Overload Protection	France Schneider
	Relay	France Schneider
Configuration	Transmission Shaft	40Cr quenched and tempered
	Straight Optical Axis	Imported Hard Shaft
	Intermittent Divider	Shandong
	Cam	Shandong
	Turntable	Aluminum Alloy

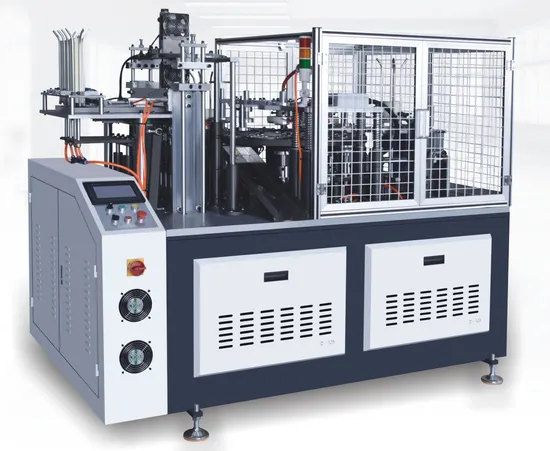

Machine Pic for Reference:
Packing and Loading Pic:

---
