Basic Info.
Special Function
Security
Certification
TUV, CCC, ISO9001, CE
Surface Finishing
Finished
Voltage Supply
AC 85V ~AC 265V 50 Hz ~ 60 Hz
Installation
Single and Bi-Part
Motor Power
DC 24V 55W Brushless Motor
Transport Package
Foam+Carton+Buggle Bag+Woodencase
Production Capacity
500sets/Month
Product Description
Product Iformation:
| Door Type | Single Door | Double Door |
| Weight of Door | ≤ 150kg | ≤ 120kg*2 |
| Opening Direction | Optional | Optional |
| Door Width | 700-1300mm | 600-1250mm |
| Voltage Supply | AC 85-265V 50-60HZ |
| Open Time | 0.5-10S (adjustable) |
| Opening Speed | ≤ 400mm/s | ≤ 400mm/s |
| Closing Speed | ≤ 300mm/s | ≤ 300mm/s |
| Manual Force | ≤ 45N | ≤ 45N |

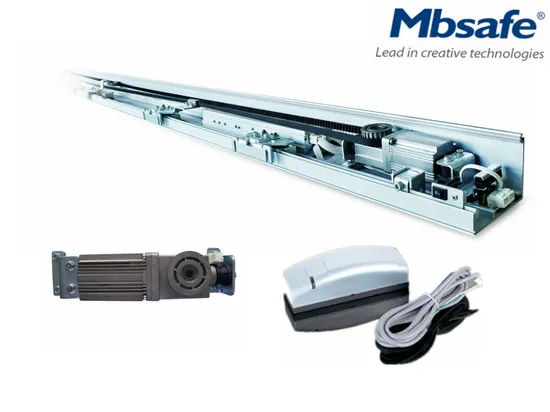

| Motor Power | DC 24V 55W Brushless Motor |
| Controller | 8 Digital Micro-computer Processing Controller |
| Temperature | -30~+50°C |
| Humidity | 35-85% RH/No dew | 35-85% RH/No dew |
MBS Company Introduction:
MBS company was founded in 2000 which specializing in automatic door operators, hospital doors, medical protective equipments, access control system, tubular motor and socket.
We are a high- tech enterprise which integrated R&D, manufacturing, sales and after-sales service.
Quality Control---Sliding Door Certification:
Testing, Packing and Warehouse:
Thank you for browsing our products. For more information, please feel free to contact us. We are alway ready to be on service for you with high-quality product and competitive price.
>>
