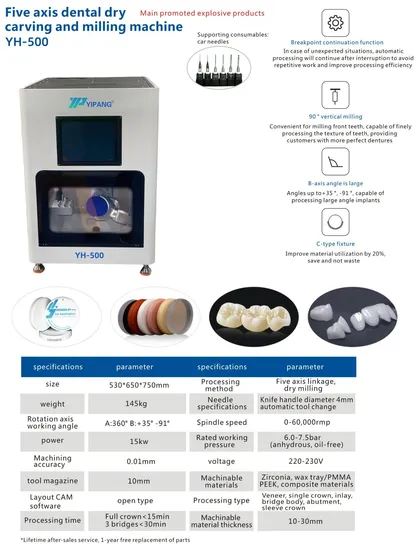

CAD Cam Milling Machine Dental 5 Axis Milling Machine Wet Dry Cutting

US$9,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
YH-500
Type
Tool Milling Machine
Object
Zirconia
Structure
Desktop
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Advantage
Good Quality
Transport Package
Carton
Specification
0.3CBM
Trademark
Yipang
Origin
China
HS Code
8461401900
Production Capacity
800000

Packaging & Delivery

Package Size
53.00cm * 65.00cm * 75.00cm
Package Gross Weight
145.000kg

Product Description

specifications parameter specifications parameter
size 530*650*750mm Processing
method		 Five axis linkage,
dry milling
weight 145kg Needle
specifications		 Knife handlediameter 4mm
automatic tool change
Rotation axis
working angle		 A:360°B:+35°-91 Spindle speed 0-60.000rmp
power 15kw Rated working
pressure		 6.0-7.5bar
(anhydrous,oil-free)
Machining
accuracy		 0.01mm voltage 220-230V
tool magazine 10mm Machinable
materials		 Zirconia,wax tray/PMMA
PEEK,composite materials
LayoutCAM
software		 open type Processing type Veneer,single crown,inlay,
bridgebody,abutment,
sleeve crown
Processing time Full crown<15min
3 bridges<30min		 Machinable
material thickness		 10-30mm
