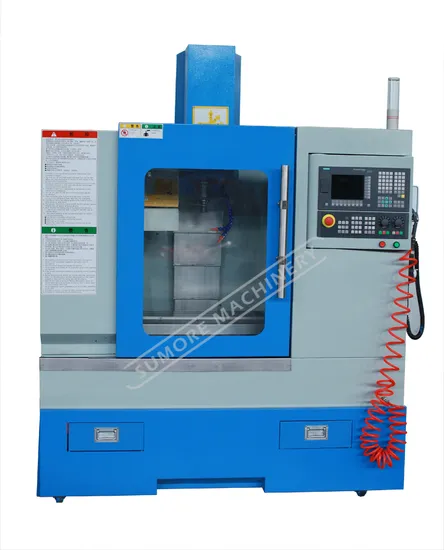

Factory direct Sale High Precision Small VMC Vertical CNC Machining Center SMC8450
(VMC from small to big size, the web pages are limited, so please contact us for more details)
As one new product of independent design & development, SMC8450 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
This machine could process holes below ∮16, milling plane below 18 and milling depth below 3mm.
.
Product Parameters

Model	SMC8450
Worktable Size	800X260mm
Travel(Longitudinal X/Horizontal Y/Vertical Z)	500X320X450mm
Main Motor Power	3.7KW
Spindle Max. Rotating Speed	Servo Spindle 6000rpm (optional 8000rpm 10000rpm)
Z Motor Torque	7.7N.m
X Motor Torque	6N.m
Y Motor Torque	6N.m
Spindle Taper	BT40
Distance of Spindle Axis to Guideway Plane	360mm
Distance of Spindle End to Worktable	90-470mm
The Vertical Permissible Error of Spindle Axis to Worktable Plane	≤0.02mm
Positioning Accuracy	0.01mm
Repeated Positioning Accuracy	0.02mm
Machine Overall Dimension	2600*1950*2400mm
Net/Gross Weight	2200/2300kgs
Packing size	2270x1880x2500mm
