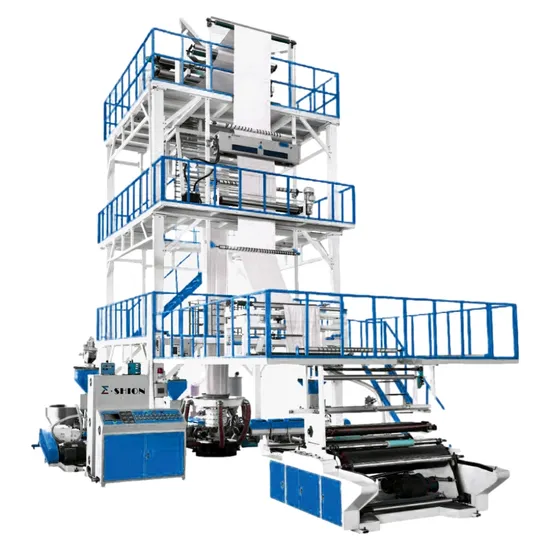

ABA Film Blowing Machine Extruder with Two Winder

Product Description

Features
Application: DHL courier bags, lamination film, agriculture film etc. Suitable material: HDPE / LDPE / LLDPE / Metallocene / EVA / PA Film layer: 3 layers Screw L/D ratio: 32:1 Direct-connection design gearbox. PID+SCR temperature controller. ABB or HITACHI inverter. Oscillating rotary device (haul-off unit). E.P.C. Edge position film guiding system. Back to back automatic winders + Trim waste rewinder. Air shaft x 4 pcs.

Get a quote

Product Parameters

Technical Specificatopm:
Model	SJ-50X2.55X1/1300	SJ-55x2.65x1/1600	SJ-60X2.70X1/1800
Suitable material	LDPE/LLDPE/MLDPE
Film width	300-1200mm	500-1500mm	600-1700mm
Film thickness	0.02-0.15	0.02-0.15	0.02-0.15
Max.extrusion output	60-90kg/h	80-120kg/h	100-150kg/h
Extruder
Screw diameter	Ф50/55/50	Ф55/65/55	Ф60/70/50
Screw Vd length	32:01:00	32:01:00	32:01:00
Screw material	38CrMoAl	38CrMoAl	38CrMoAl
Cytinder material	38CrMoAl	38CrMoAl	38CrMoAl
Cylinder cooling	370w×2	370w×2	370w×3
Driving motor	15kwx2/18.5kwx1	18.5kwx2/30kwx1	22kwx2/37kwx1
Temperature control	3	3	4
Average power-consume	80kw	90kw	125kw
Tlype of die
Die size	Ф200-Ф300mn	Ф250-Ф350mn	Ф300-Ф400mn
Temperature control	3	3	4
Air ring
Air blower	5.5kw	7.5kw	11kw
Take-upunit
Roller width	1300mm	1600mm	1800mm
Effective width	1200mm	1500mm	1700mm
Take-up speed	10-65m/min	10-65m/min	10-65m/min
Take-up motor	1.5kw	2.2kw	2.2kw
Winding unit
Type	SURFACE FRICTION TYPEFRICCION DESUPERFICIE
Winding motor	1.5kw	1.5kw	2.2kw
Winding speed	10-60m/min	10-60m/min	10-60m/min
Overall dimension(Ln W×H)	7500x5500×8000mm	8000×6500x9000mm	8500×7500×10500mm

OPTIONAL EQUIPMENT AUTO LOADER FILM SURFACE TREATER HYDRAULIC FAST-CHANGING DEVICE AUTOMATICMICK WEIGHT

Get a quote

Product Description

Recommend Related Products
ABA Film Blowing Machine PP Film Blowing Machine Single layer Film Blowing Machine

Four-color Flexo Printing Machine Six-color Flexo Printing Machine T-shirt Bag Making Machine
automatic Flat Garbage Bag Making Machine Drawstring Garbage Bag Making Machine Plastic recycling granulator Our Factory
OUR WORKSHOP Our factory specializes in the manufacturing of blown film machines, bag-making machines, printing machines, and pelletizing machines. Our workshop is equipped with modern technology and a dedicated team of skilled professionals. We take pride in our ongoing commitment to quality and innovation, striving to keep our machines in line with industry standards. Our workshop is well-organized, promoting a productive atmosphere where attention to detail is highly valued. We are dedicated to meeting the needs of our customers and providing them with reliable machinery solutions.




FAQ
Q: Where is your factory located? A: Our factory is situated in Ruian City, Zhejiang Province, China. It's about a 40-minute flight or a 4-hour train ride from Shanghai. We would be happy to pick you up at the airport or station and welcome you to visit our factory.
Q: How long is your delivery time? A: Our standard delivery time is usually 30-45 days. However, if you need it urgently, we can manufacture your machine first and deliver it within approximately 10 days.
Q: What's your warranty policy? A: We offer an 18-month warranty on all our products, along with lifetime maintenance. This means that if any parts break down during the warranty period, we will provide free replacement parts.
Q: What package do you use for the product? A: Our products are coated with anti-corrosion oil and covered with plastic film for protection. If you prefer wooden box packing, there may be an additional cost.
Q: Does your factory provide installation service? A: Yes, our engineers can go to the customer's factory for installation. The buyer should prepare the necessary materials for testing the machine in advance and bear the cost of the supplier's technicians, including round-trip airfare, visa fees, accommodation, and wages. The cost is USD 120 per person per day, starting from the date of work commencement until their arrival at the factory.
Q: What are your terms of payment? A: We accept various payment methods such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Western Union. Please let us know which method you prefer when making the payment.
Q: What if parts break within the warranty period? A: If any parts break down due to manufacturing defects within the warranty period, we will express replacement parts free of charge. You can contact our customer service team to initiate the warranty claim process.tact our customer service team to initiate the warranty claim process.
