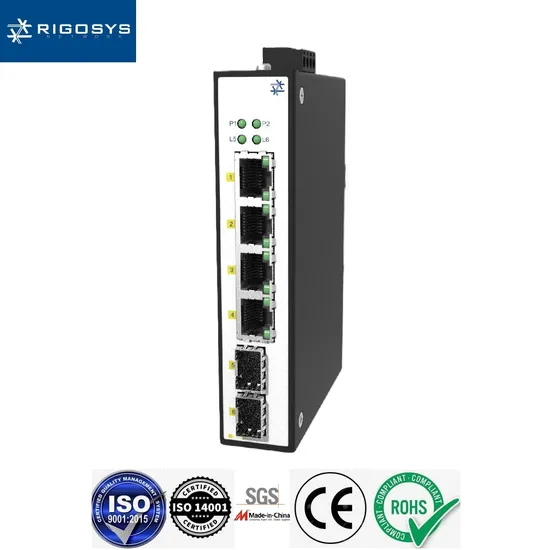

6-Port Full Gigabit Industrial-Grade DIN-Rail Unmanaged fiber/optical Access Ethernet Network Switch _OEM/ODM

Product Description

Product Features

Provides 6 Gigabit Ethernet interfaces, including 2 SFP slots ; Gigabit electrical port 10/100/1000M adaptive, full/half duplex, MDI/MDIX adaptive mode; The power supply supports overload protection, reverse connection protection and redundancy protection (LV); Plug and play, convenient and fast; IP40 protection level, fanless cooling ; Adopting industrial-grade power supply design, a variety of power input solutions are available to meet users' flexible applications; -40ºC~75ºC operating temperature, meeting industrial application scenarios . Default rail, optional wall mounting;

Switch Parameters
Network Interface
Port description	2 Gigabit S FP slots, 4 Gigabit electrical ports
Power Supply
Power input	Low-voltage DC power supply: dual power supply redundancy, range DC 12 ~36V, 4-pin terminal
Power consumption	<5W
Protect	Support overload protection, reverse connection protection and redundancy protection (LV)
Technology
Ethernet specifications	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX and 100Base-FX IEEE 802.3ab (1000Base-T) IEEE 802.3z (1000Base-SX/LX)
MAC address table	4K
Priority queue	8
Jumbo frame	9216 bytes
Processing method	store and forward
Switch Features	Exchange delay time : <10μs Switch backplane bandwidth : 20Gbps
Mechanical Properties
Dimensions (W x H x D ) mm	28 x 130 x 88
Shell	Metal
Heat dissipation method	Fanless design, natural heat dissipation
Protection level	IP40
Installation method	Default rail, optional wall mounting
Weight (g)	≤1KG
Environment
Storage temperature	-40~85 ºC
Operating temperature	-40~75 ºC
Working humidity	5%~95% no condensation
Certification
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS)	Contact discharge 6 kV, air discharge 8 Kv 10V/m,80MHz~1GHz Signal terminal 1 kV, power input terminal 2 kV Power input: 2kV (line/ground), 1kV (line/line) 10V, 150kHz~80MHz
Impact	IEC60068-2-27
Fall	IEC60068-2-32
Shock	IEC60068-2-6
Security Level	EN 62368-1 (LVD)
Warranty	5 years

Switch Size

Product Model
Model	Description
RIS3206-4GT2GP-L7D	Industrial-grade DIN-rail unmanaged switch, 4 Gigabit electrical ports, 2 Gigabit S FP slots, 12~36VDC dual power supplies

Certifications
Production Process
FAQ:
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized expert service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What's the payment type?
A: T/T.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.

OEM/ODM or more requirements, welcome to contact us.

---
