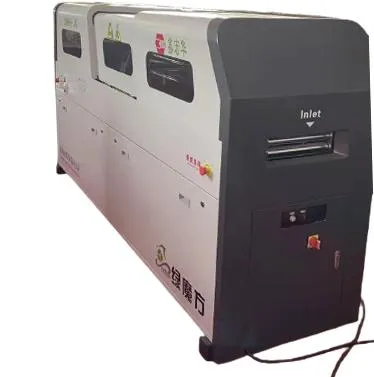

Fully Automatic Lgs Light Gauge Steel Frame Roll Forming Machine for Prefab House Villa

Product Description

Main Technical Data

Size	C89
Dimension	2850*820*1480mm
Main Motor Power	5.5KW
Hydraulic Motor	5.5kw
Forming Steps	8Steps
Forming Speed	2-3tons/8hours
Voltage	380V/50HZ/3PH
Effective Width	89mm
Material Width	174mm
Flange Height	38mm
Lip	9mm
Material Thickness	0.6-1.2mm
Tolerance for cutting and punching	±0.5mm
Tolerance for forming	±0.75mm
Control System	IPC Computer Controlling System
Design Software	Vertex Software
Material for All Roller	SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
Material for Shaft	SKD-11
Material for Puncher	SKD-11
Material for Cutter	SKD-11

Main Accessories

1 Main Forming Machine

2 3 Tons Manual Uncoiler

3 Motor System

4 IPC Computer Controlling System (Lenovo Laptop)

5 Production Software (1set)

6 Design Software-Vertex,forever using license

7 Hydraulic Automatic Punching Device (Web Notch,Swage,Service Hole,Dimple)

8 Hydraulic Post-cutting Device (Material:SKD-11)

9 Automatic Printing Device

10 Run Out Table (4m)

11 Operation Manual

Related Products
Rollex-2020
XHH C63-140
XHH-C75
XHH-89-5S Model
XHH-140 Model
XHH-160 Model
XHH-310 Model
Q1.Are you a trading company or manufacture.
1A: We are a factory.
Q2. Do you provide samples ? Is it free or extra ?
2A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We could offer the sample for free charge
3Q: Where is your factory located?
3A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
4Q: Can you make the machine according to my design or prototype?
4A: Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
5Q: How can I trust you that machines pasted testing running before shipping?
5A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
6Q: Do you provide installing and training overseas?
6A: Overseas machine install and worker training services are optional.
7Q: How is your after sales support?
7A: We provide technical support on line as well as overseas services by skillful technicians.
8Q: Guarantee period:
8A: Within one year since the date of finishing commissioning.

---
