US$30,000.00-35,000.00
|
1 Piece
(MOQ)
|
Basic Info.
After-sales Service
One Year
Installation
Internal Threaded Connection
Liquid Contained
Medicine
Spray Rod Type
Hydraulic Lift
Working Pressure
0.2-0.5 MPa
Medicated Liquid Stirring
Jet Flow+Back Flow
Medicine Pump Construction
Diaphragm Pump
Gear Box
Uniquely Desinged 8-Speed Gearbox Very Smooth
Drive Mode
Four-Wheel Drive
Application Efficiency
6-10 HEC/H
Topdressing Efficiency
6-10 HEC/H
Transport Package
Loose Package
Production Capacity
2000 PCS/Year

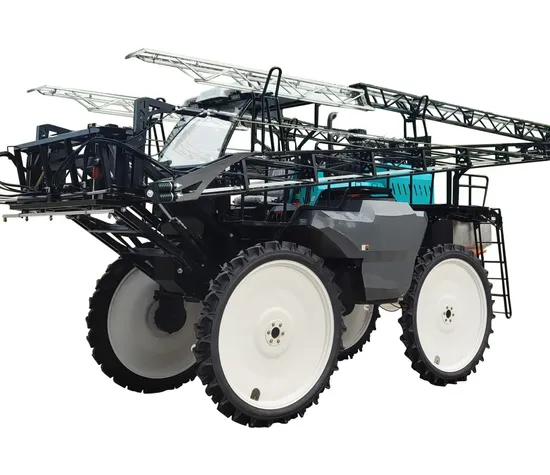

Product Description
Product Description:
The company has cultivated plant protection machinery for more than 10 years, has a professional technical team, and has developed and produced a number of products through the national 3C certification, and obtained a number of technical patents.
Suitable for wheat. rice, corn, cotton, rapeseed, tea tree, planting seedlings and vegetables, sugar cane and other crops during different growth period for insecticides, fungicides, herbicides and defoliants ripening, can-sugar promoter, foliar fertilizers
| Project name | Specification parameters | Item name | Specification parameters |
|
| Overall size | Overall dimensions (mm) | 6260*2500*3170 | Powertrain | Engine power (kw/r/min) | 76/2200 |
| Ground clearance (mm) | 920 | Battery capacity | 2*24v 2*45Ah |
| Spray length (mm) | 20000/25000/30000 | Engine type: | 100HP- Yunnei cylinder water cooled engine |
| Spray rod lift (mm) | 450-1600 | Walking system | Weight of the whole machine (Kg) | 3000 |
| Wheel base (mm) | 1850/adjustable | Drive | Four-wheel drive |
| Wheelbase (mm) | 2500 | Steering | Four-wheel steering |
| Cab | Adjustable | Gearbox | Forward gear 3, backward gear 2
with high and low speed transmission |
| Spray system | Spray rod position | Front | Brakes | Drum Brake |
| Spray rod material | Aluminium | Tires | Pneumatic rubber |
| Number of spray bodies | 51 | Tire diameter (mm) | 1600 |
| Spray rod type | Hydraulic lift | Tire width (mm) | 140 |
| Medicine cabinet Volume (L) | 1400 | Turning radius (mm) | 4300 |
| Working pressure (Mpa) | 0-2.5 | Drive mode | Four-wheel drive |
| Drug pump flow (L/min) | 160 | Walking speed (km/h) | <28km/h |
| Medicated liquid stirring | Jet Flow+Back Flow | Work benefit | Application efficiency | 6-10hec/day |
| Medicine pump construction | Diaphragm pump | Topdressing efficiency | 6-10hec/day |
| Medicine pump drive | Hydraulic motor | Fuel consumption (L/h) | 20 |
WORKSHOP:
Exhibition :
FAQ:
Q: how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment
Q: what can you buy from us?
A: We have the most complete range of agricultural machinery spraying accessories in the industry, as well as various types of spraying machines
Q: What's your delivery time?
A: Normally about 15-30days after got your deposit.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF;
>>
