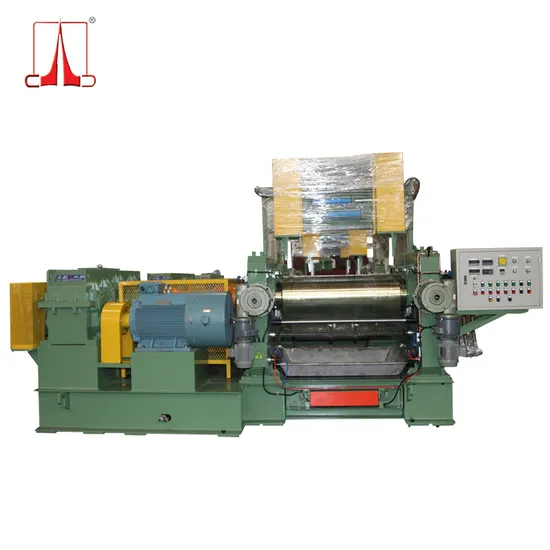

Xk760 Mixing Machine Mixer Open Mixing Mill Rubber Mixer with Low Price

Product Description

Quick Details
Condition: New
Type: Open Mixing Mill
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: XK760-2800
Voltage: 380V
Power(W): 355000
Dimension(L*W*H): 7540x4170x2050 mm
Weight: 65 T
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Mixer Mill
Rubber Mixing Mill Color: Green / Blue / etc. (customize available)
Mixing Mill Material: Cast Iron / Steel
Motor for the Mixer Mill: Frequency Control
Small Mixing Mill Rotor Material: Chilled Cast Iron
Hardness of Mixing Mill Rotor: 70-75 HRC
Mixer Mill Reducer Material: Hardened Gear

Packaging Details: Delivery Detail:

Wood Pallet & Film Wrap (Mixer Mill)

90 Working Days Since Down Payment (Mixer Mill)

Specifications
Mixer Mill
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Converter Motor
4. Chilled Cast Iron Alloy & Chromeplate
Why Choose Mixer Mill Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

Main Parameters of Our Mixer Mill

Model	XK400×1000	XK450×1200	XK560×1830	XK610×2030	XK660×2300	XK760×2800
Roller Diameter (mm)	400	450	560	610	660	760
Roller Length (mm)	1000	1200	1830	2030	2300	2800
Front Roller Max. Speed (m/min)	18.7	23	28.5	30	30	30
Speed Ration of Front Roller to Rear Roller	1:1.17	1:1.17	1:1.17	1:1.09	1:1.09	1:1.09
Batch Capacity (Kg)	45	70	110	150	210	360
Max. Roller Space (mm)	10	10	15	15	15	15
Roller Space Regulation Method	Manual or Motor-driven (customize available)
Power Supply	AC 380V 50HZ 3P (customize available)
Motor Power (Kw)	55	75	132	185	220	260
Reducer Type	Hardened-gear
Driving Method	Cardan Shaft
Dimension (mm)	4200x1680x1700	5000x1880x1780	6050x2150x1800	7070x2190x1785	7290x3610x1790	7540x4170x2050
Weight (T)	11	13	22	25	44	65

Application of Lanhang Brand Mixer Mill
Used to mix Rubber, Silicone, Abrasives, and PVC compounds. Especially in rubber-processing, mills are built for different mixing processes.

Features of Lanhang Machinery Mixer Mill
1. Roller: Made of chilled casting alloy and uniform thickness with good cooling effect.
2. Frame and cover: Made of steel casting or welded by steel plate, which have safety strength and high precision machinery.
3. Roller gap adjustment device: Options: manual or electric adjustment and gap display.
4. Reducer: fully-closed, hardened gear, forced lubrication, high safety factor, and less noise.

Main Composition of Lanhang Company Mixer Mill
Build Up of Two Roll Mill
A mill is typically assembled on a steel foundation plate, which is again set on rubber-pads or sound-metals adjustable, to isolate noise-levels to the building also to avoid tensions on the mill structure, precisely levelling out of the mill is very important for smooth operation.

Roller Bearing
Two rigid pillars with removable tops carry the rolls, which are placed either in friction/bush bearings or high quality anti-friction roller bearings. Roller bearings are pretty much standard nowadays, as they allow for 20 - 30 % in power-savings. A lubrication system is no longer required.


Roller Nip Setting
Adjustment of the front roll used to be made by hand (manual by ratchet) or later motorized by worm gear.

Nowadays hydraulic pistons adjust the rolls and also protect rolls from high forces that can build up in between the rolls (roll safety). They also open roll gap immediately when pushing the safety bar in front or back in case of emergency (required by European Safety standards CE).

Rollers
A mixing mill has 2 horizontal rolls set up back to back. They are made of ground chilled cast iron, with surface hardness ranging from 475 - 520 HV (Vickers hardness) up to 520 - 580 HV (or 68 - 72 HRC).

Packaging & Shipping
Wood Pallet & Film Wrap ( Mixer Mill )

Our Services
Mixer Mill
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support

---
