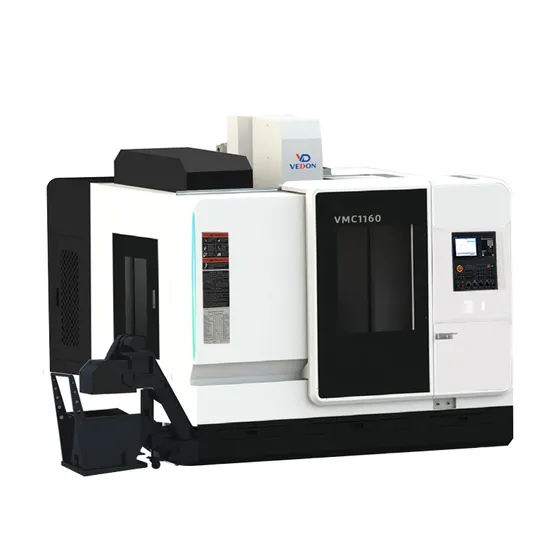

Reasonable Price 2024 New Design Model High Performance Automatic CNC Milling Machine Vertical Machining Center Vmc1160 Vmc1270 3/4/5 Axis Vmc Machine Tool

Product Description

Features of machining center •High quality resin sand cast iron
•Taiwan main axis
•Taiwan ball screw and lock nut
•Taiwan booster cylinder
•NSK bearing in Japan
•German R + W coupling
•Automatic lubrication system
•Selection of chip conveyor
Product Parameters

Item	Unit	VMC1160	VMC1270
Capacity
X axis travel	mm	1100	1200
Y axis travel	mm	600	700
Z axis travel	mm	600	600
Spindle nose to worktable	mm	120-720	150-800
Spindle center to column	mm	650	710
Leadscrew/Guideway size
Leadscrew diameter	mm	40	40
Linear guideway width	mm	45/45/45	45/55/45
Worktable size
Worktable Length	mm	1200	1300
Worktable width	mm	600	700
T slot qty-width*distance	mm	5-18*100	7-18*100
Max loading capacity	kg	800	1000
Spindle
Spindle speed	rpm	10000/Belt	10000/Belt
Spindle motor power	kw	11/15	11/15
Spindle torque	Nm	70	70
Spindle taper		BT40	BT40
Feeding system
Fast moving speed (X/Y/Z)	m/min	36/36/30	36/36/24
Cutting speed	mm/min	1-10000	1-10000
Feed motor power	kw	3/3/3	3/3/3
X/Y/Z Axsis motor torque	Nm	22/22/22	22/22/22
Tool Magazine
Capacity	pcs	Disc/24	Disc/24
Max tool diameter	mm	120	120
Max tool weight	kg	8	8
Max tool length	mm	300	300
Tool change time (TT)		2.33	2.33
Accuracy
Positioning accuracy	mm	0.008	0.008
Repeat accuracy	mm	0.005	0.005
Machine dimensions
Length	mm	3300	3450
Width	mm	2400	2500
Height	mm	3000	3050
Weight	kg	6300	7300

Machine Details
Taiwan CELLS/OKADA/TD/KENTURN Spindle for choose

Siemens/Fanuc/Mitsubushi/KND/GSK/SYNTEC controller could be selected according to customer's requirement

Taiwan OKADA 24pcs arm type tool magazine

Taiwan HIWIN linear guide, Japan NSK/Nachi bearing

4th axis

Processing Effect
Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
