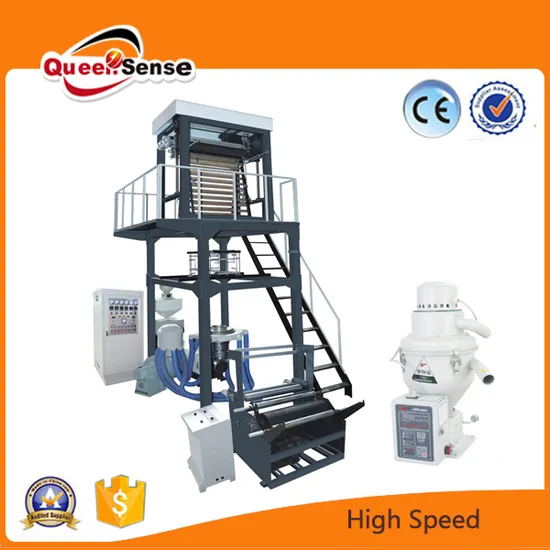

High Speed Mini Type Blown Filml Machine Plastic Film Machine

Product Description

Condition: New
Application: Film
Plastic Processed: PE
Blow Moulding Type: Extrusion Blow Moulding
Place of Origin: Zhejiang, China (Mainland)
Brand Name: QUEENSENSE
Model Number: QS-A-H50/55/60/65
Certification: SGS CE
Delivery Detail: 15-25 days
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
Application:

The main motor adopts frequency conversion regulator speed, increase the stability of the host speed, and can save energy 30%;Screw and barrel by 38# chromium, molybdenum, aluminum, after nitrogen treatment, durable; traction frame adopts lift, no matter blow large and small size film can make the cooling effect to achieve the best; and double cutting double volume: using three moment motor, can keep proper tension, so that the volume of neat and easy roll changing; the rotating head: so that the uniformity of the film thickness, rolling surface more smooth and more uniform, especially suitable for composite film, printing film.
SPECIFICATION:

Model	QS-A-H50	QS-A-H55	QS-A-H60	QS-A-H65
Suitable Material	HDPE/LDPE/LLDPE
Film Width	100-600mm	200-800mm	300-1000mm	400-1200mm
Film Thickness	0.008-0.15mm	0.008-0.15mm	0.008-0.15mm	0.008-0.15mm
Max.Extrusion Output	HD:50kg/h LD:60kg/h	HD:80kg/h LD:90kg/h	HD:100kg/h LD:110kg/h	HD:120kg/h LD:130kg/h
Extruder
Screw Diameter	Ф50	Ф55	Ф60	Ф65
Screw L/D Length	30:1/32:1	30:1/32:1	30:1/32:1	30:1/32:1
Screw Material	Saxm-645/38 Crmoala
Cylinder Material	Saxm-645/38 Crmoala
Cylinder Cooling	250w*2	250w*2	250w*2	250w*2
Driving Motor	22Kw	30Kw	37Kw	45Kw
Temoerature Control	4 Zone	4 Zone	5 Zone	5 Zone
Average Power-consume	25kw	30kw	42kw	50kw
Die Size	Ф60-120	Ф80-150	Ф100-220	Ф120-250
Temperature Control	1 Zone	1 Zone	1 Zone	1 Zone
Air Ring	Double LipФ650	Double LipФ800	Double LipФ800	Double LipФ800
Take-up Unit
Roller Width	700mm	900mm	1100mm	1300mm
Take-up Speed	5-100m/min	5-100m/min	5-100m/min	5-100m/min
Take-up Motor	1.5kw	1.5kw	1.5kw	1.5kw
Winding Unit
Type	Surface Frication Type
Winding Unit	1.5kw	1.5kw	1.5kw	1.5kw
Winding Speed	5-100m/min	5-100m/min	5-100m/min	5-100m/min
Outline Dimension(L*W*H)	4.1*1.7*4.1m	4.8*1.9*4.9m	5.5*2.1*5.1m	5.8*2.5*5.5m

---
