4sh High Pressure Spiral Reinforced Rubber Hydraulic Hose with Fitting

Product Description

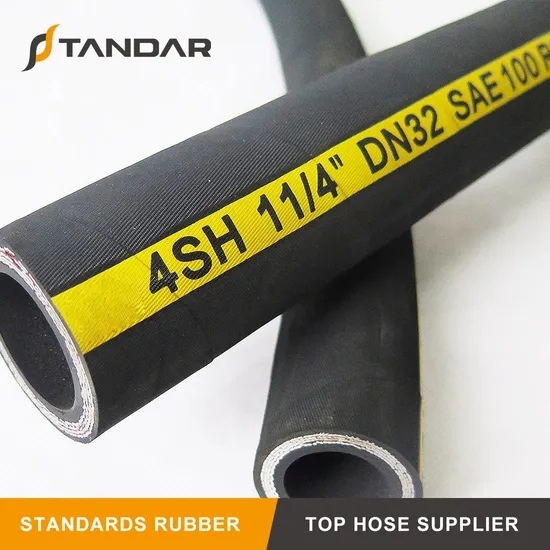

4SH High Pressure Spiral Rubber Hydraulic Hose
1.STRUCTURE CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +212°F; -40°C / +100°C
MAX OPERATING TEMPERATURE: 257°F 125°C
INSERT: SHF-TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: FOUR HIGH TENSILE STEEL SPIRALS
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS.: EN 856 4SH - ISO 3862-1 4SH
2.KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Approved at 1.000.000 fl exing impulse cycles Over standard pressure resistance biological and mineral oils compatibility.
Appearance: Wrap
Branding: Printing and indelible branding with embossed technology
Colour: Black, red, blue, yellow, green, gray.
3.APPLICATIONS & FLUIDS
Hydraulics: Very high pressure power lines
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols,mineral oils in aqueous emulsion, water.

PART.REF.	HOSE I.D			R.O.D	O.D	MAX W.P		MIN B.P		MIN B.R	W.T
	DN	dash	inch	mm	mm	bar	psi	bar	psi	mm	Kg/m
WS 4SH 19	19	-12	3/4"	28,2	32,0	420	6092	1680	24366	280	1.62
WS 4SH 25	25	-16	1"	35,1	38,1	380	5511	1520	22045	340	2.12
WS 4SH 31	31	-20	1.1/4"	42,2	45,2	325	4714	1300	18855	455	2.55
WS 4SH 38	38	-24	1.1/2"	49,1	53,5	290	4206	1160	16824	560	3.26
WS 4SH 51	51	-32	2"	63,5	68,0	250	3626	1000	14504	710	4.92

---
