Servo 25kg High Speed Metal Gear Programmable Digital for 1/8 1/10 Scale

Product Description

Parameter

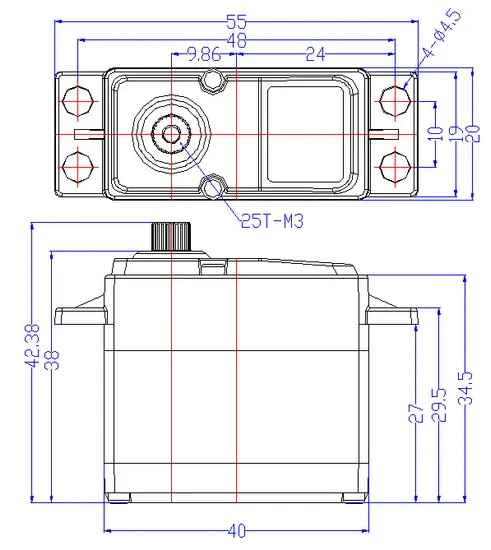

1,Mechanical Specification:
Size:55X20X38
Limit Angle:No limit
Case material:PA+Aluminum
Gear material:Metal Gear
Bearing type:Ball bearings
Angle Sansor:Carbon-Film Potentiometer
Angle:220°
Life:1000000Cycles Min
Connector and Cable:Type:JR
Material:PVC
Length:30CM
"Pin Definition:1 Signal
2 Vcc
3 GND"
The Weight:60.6± 1g
Horn Type:25T/5.9mm
Gear Ratio:1/275
Back Lash:<=0.5°
The rocker phantom:0°
The rocker screw:M3X6
Motor:CoreLess Motor
2,Control Specification:
Command Signal:Pulse width modification
Control System Type:Digital comparator
Operating Travel:180°
(at 500→2500μsec)
Left&Right Travelling Angle deviation:≤ 5°
Centering Deviation:<=1°
Neutral Position:1500 μsec
Dead Band Width:≤4 μsec
Rotating Direction:Counterclockwise(1500→2000 μsec)
Pulse Width Range:500→2500 μsec
Electronic Protection:Stall 3sec

product	brand new
colour	As shown in the figure

FAQ:
1,How about the quality of your product? Before shipping out, all goods have been double verified by FUT quality inspection center ,Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable. Rich stock can satisfy urgent requirement.And support small orders. 3,What are the warranty and after-sale of the product?
If the products can't work after receiving it,we will replace your new product immediately and make the judgement for the issue. If the products don't meet my demand after I received it,you can return back to us, we will refund your full payment. 1-2 years warranty according to different products 1-3 months to replace new items for free. 4,Can you OEM|ODM?
Of course, we can. FUT have professional R & D Center,we can develop and manufacture according to customer's requirements. We can make your package please Such as printing your logo. 5,Are you a manufacturer?
Yes, we manufacture different controller board, Exponsion Shiled Board, sensor Module for Arduino, 3Dprinter Controller Board,Raspberry Pi,Banana pi. Our factory and office are in Shenzhen, welcome you to visit at

---
