Product Details
Product Description
Product Description
Description:

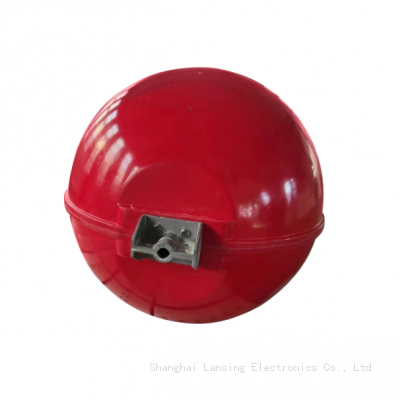

Our BZ01 aircraft warning sphere is designed to increase safety and visibility in the airspace surrounding power lines. This sphere is a crucial addition to any transmission line, ensuring that low-flying aircraft are aware of potential hazards and can navigate around them effectively.
Constructed from highly durable and weather-resistant two high-grade Fiberglass Reinforced Plastics (FRP), BZ01 warning sphere is built to withstand the elements and provide reliable perforrmance year-round. The bright, high-visibility color ensures that it can be easily seen by pilots, even in low light conditions or inclement weather. Its simple but effective design ensures that it is easy to install and maintain, providing peace of mind for power line operators and pilots alike.
The warning sphere serves as a vital tool for ensuring the safety of both air traffic and the power transmission infrastructure. By alerting pilots to the presence of power lines, it helps to prevent potentially catastrophic accidents and disruptions to the power supply. By incorporating our sphere into their transmission lines, power companies can fulfill their obligation to safeguard the airspace and contribute to overall aviation safety.
Our sphere is providing a reliable and effective solution for power line operators. Its unobtrusive design minimizes the impact on the surrounding landscape while maximizing visibility for aircraft. The sphere's low maintenance requirements make it a cost-effective choice for any transmission line system.
Features& Benefits:
● UV-stabilized Fiberglass Reinforced Polymer durable material with better weather resistant
● Resistant to corrosion, rust, water, dust, high temperature.
● It can be delivered in five different type of ozone resistant colors. The visibility of the warning sphere is enhanced by the choice of colors that contrast with the natural background
● Properties do not change under various complex environment, such as rain, snow, ice,oil and so on.
● Warning sphere can suit power line conductor which diameter is between 6.5 mm and 55 mm.
● Drain holes structure can prevent accumulated rain water inside the spheres
● Stacking compatible design, save storage space and freight charge
● Optional preformed armor rods for fixing warning sphere on power line and can decrease vibration and abrasion for the conductors.
● Optional Reflective tape is more durable and can make pilots see power line clearly.
● Easy to install.
● Long service life,free of gouges, cracks, and sharp corners or points.
● Both sphere diameters of 600mm and 800mm are available
Optional color:
Specifications
Advantages
Mounting Dimension(mm）
>>
