Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000, EPA
Specification
6000*1900*2100mm
Packaging & Delivery
Package Size
356.00cm * 124.00cm * 235.00cm
Package Gross Weight
1795.000kg
Product Description
Product Description

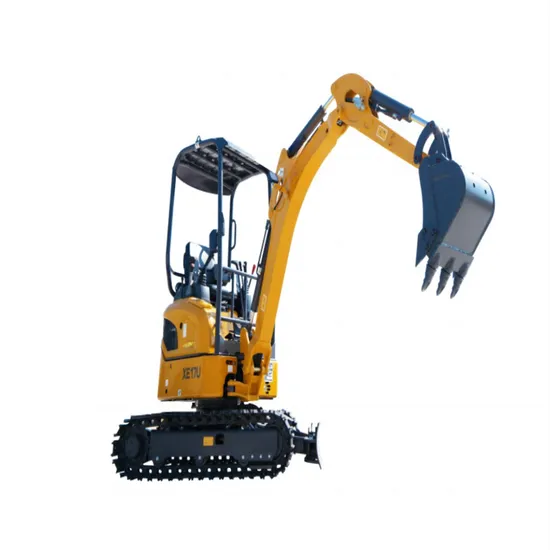

XE17U has a tail-less design with the smallest turning radius in the industry, which makes it compact and flexible and easy to work in narrow working conditions.The working device can be deflected, and the left and right deflection angles are 60 and 50 degrees respectively, which can easily do the construction work in the corners of alleyways, basements and other operating scenarios.The customised high-torque automatic two-speed travel motor increases the traction power by 20%, which is the largest in the industry with the same tonnage, and makes the travelling and turning on the muddy road more powerful.Equipped with split driving shed and retractable drop-off, it is easy to pass through the narrow and low space.The left and right elongated ends of the bulldozer are upgraded to three holes and two axles, which makes it more convenient to fold when passing through narrow spaces; the effective volume of the diesel tank is increased by 17%, and the range of the whole machine is increased by 2 hours.
Product Parameters
| Working weight | 1795kg |
| Bucket capacity | 0.04m³ |
| Rated power | 11.8/2300kW/rpm |
| Travelling speed(high/low) | 4.2/2.3km/h |
| Turning speed | 10.8rpm |
