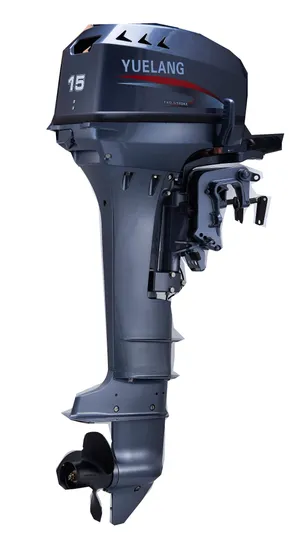

| Model 15HP |
| Demension Overall Length: 878mm(34.5in) OverallWidth: 363mm(14.2in) Overall Heights: 1062mm(41.8in) Overall Height L: 1189mm(46.8in) |
| Weight S: 38Kg(83.7lbs) L: 40Kg(88.1lbs) |
| Full Throttle Operating Range 4500-5500r/m |
| Maximum Output 11 kw/15hp |
| Idling Speed 1050±50r/m |
| Displacement 246cc |
| Bore X Stroke 56X50mm(2.2X1.96in) |
| Ignition System CDI |
| Spark Plug NGKBR7HS-10 |
| Spark Plug Gap 0.9-1.0mm |
| Control System Tiller Handle |
| Starting System Manual |
| Starting Carburation System Choke Valve |
| Gear Position Forward-Neutral-Reverse |
| Gear Ratio 2.08 ( 27:13) |
| Trim And Tilt System Manual Tit |
| Recommended Fuel Unlead Gasoline |
| Recommended Engine Oil 2-Stroke Outboard Motor Oil |
| Blended Fuel Oil Ratio 50:1 |
| Gear Oil 0.250L |
| Fuel Tank Capacity 24L |
| orque 20N.m/2500rpm |
| propeller 9(1/4)9-J1 |
| Fuel Consumption 8L/h |
| Packing Size 143.5*72*45CM |
