Product Details
Product Description
Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: OEM
Type: Cat 5e
Number of Conductors: 4
Packaging & Delivery
Specifications
1. CE, ISO, ROHS, LSZH, and FLUKE CERTICIATION
2.CONDUCTOR: CU/CCA
3.SOLID TWIST PAIR
Frequency
MHz
| Attenuation
dB/100m
| NEXT
dB
| PS-NEXT
dB
| RL
dB
| ELFEXT
dB
| PS-ELFEXT
dB
|
| 1 | 2.0 | 65.3 | 62.3 | 20.0 | 64.0 | 61.0 |
| 4 | 4.1 | 56.3 | 53.3 | 23.0 | 52.0 | 49.0 |
| 8 | 5.8 | 51.8 | 48.8 | 24.5 | 45.9 | 42.9 |
| 10 | 6.5 | 50.3 | 47.3 | 25.0 | 44.0 | 41.0 |
| 16 | 8.2 | 47.2 | 44.4 | 25.0 | 39.9 | 36.9 |
| 20 | 9.3 | 45.8 | 42.8 | 25.0 | 38.0 | 35.0 |
| 25 | 10.4 | 44.3 | 41.3 | 24.3 | 35.8 | 33.0 |
| 31.25 | 11.7 | 42.9 | 39.9 | 23.6 | 34.1 | 31.1 |
| 62.50 | 17.0 | 38.4 | 35.4 | 21.5 | 28.1 | 25.1 |
| 100 | 22.0 | 35.3 | 32.3 | 20.1 | 24.0 | 21.0 |

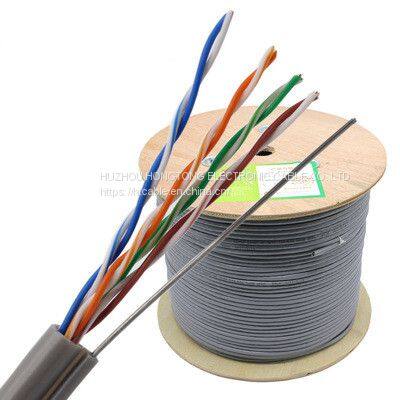

Structure:
Conductor: 24AWG(0.50mm) Copper
Insulation: 0.90mm HDPE
Sheath: PVC or LSZH
AWG 24 Cat5e Cable is used for local communication. And Cat5e UTP Cable is a twisted pair cable for carrying signals and main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second
