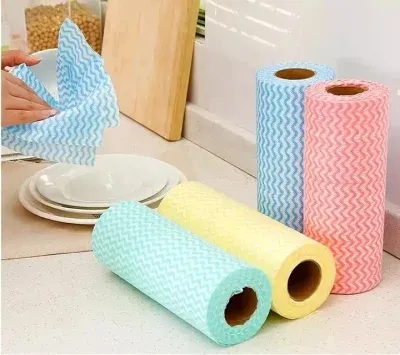

Lazy Rag Big Log for Kitchen Wiper Cloth Making Machine Fully Automatic

Product Description

Automatic lazy rag kitchen cloth production line consists of: automatic rewinding machine, big rotary cutter machine, automatic pillow heat shrink packaging machine.
Machine layout:
Fully automatic perforation machine
Raw materials width:2200mm
Raw materials diameter:≤Φ1200mm
Paper core diameter:76mm
Raw materials GSM:35-120 GSM
Feeding system:Single-layer independent rear frame , Dual hair belt, each belt width 200mm, pneumatic control paper delivery belt, (pneumatic paper)
Original paper seat: supporting the customer's original axis (our original paper axis can be selected)
Tension control:Independent drive Independent frequency conversion adjustment for each paper roll
Paper wear mode: Manual guide of paper
Turning mode of guide paper roller: active guide roller in the drive belt part
Cut off disc knife: chain drive cut off (adopt spray device )
Perforation knife:2 pcs
Re-winded rolls diameter:60-240mm
Perforation distance:unlimited
Total power:20kw
Pipe ping mode:automatic
Imported alloy blade for bottom knife
Paper breaking detection: with paper breaking detection system
Pneumatic system: customer-owned system
Speed :120 M/min
Minimum air pressure requirements: 0.45Mpa-0.6Mpa:
Gas consumption: standard status 50 M3 / shift (unit one automatic valve)
Paper delivery belt drive: independent paper rack, installed with independent servo motor on each shaft, Shaft paper roller can be driven independently
Head steel plate thickness: 30 mm thick finishing steel plate
Rear upper paper frame material: 20 mm thick steel plate (with reinforced structure)
Protection: Protective cover for main transmission parts. All transmission parts of the whole machine meet safety protection requirements
Electrical appliances: PLC Delta brand, touch screen Kunlun common state brand frequency converter Inweten brand, servo motor European letter brand.
Automatic log Band Saw Cutting
Machine
Technical parameter:
1 . Cutting speed: 15-30cuts/min
2 . Cutting blade size(L*W*H): 5180*100*1 .05mm
3 . Log length: 2200mm
4 . Cutting diameter: 1 50 - 300mm
5 . Cutting length: max 300mm
6 . Cutting tolerance: ± 2 mm
7 . Power: 15KW ( 380 V 50 Hz 3Phase)
8 . Overall Dimension(L*W*H): 5300*2350*2200mm
9 . Machine weight: 270 0 KG
Heat- shrink machine
Packing big size rolls max diameter 40cm
Technical parameter:
1 . Max packing size L( no limits)* W*H
BF- 850 :W ≤ 650mmH ≤ 300mm (customized) BS- 7550 N:(W )550* H(300) MM
2 . Max sealing size
BF- 850 : Film width ≤ 900mm
BS- 75 5 0 N: tunnel size 1 5 0 0 * 7 5 0 * 5 0 0 mm . 3
Packing speed
BF- 850 : 15-30pcs/min
BS- 755 0 N: 0 - 30m/min
4 . Electric supply and total power
BF- 850 :220v 50hz 2 kw
BS- 7550 N:3 80v 50hz 1 6 kw
5 . Air pressure
BF- 850: 5 kg/cm³
BS- 7550N:/
6 . Weight
BF- 850:450kgs
BS- 7550 N: 320kgs
7 . Dimension (mm)
BF- 850: 2 310 *128 0*1460mm
BS- 7 5 5 0 N:2 10 0 * 8 5 0 * 12 0 0
8 . Label separating machine
9 . Conveyor belt

---
