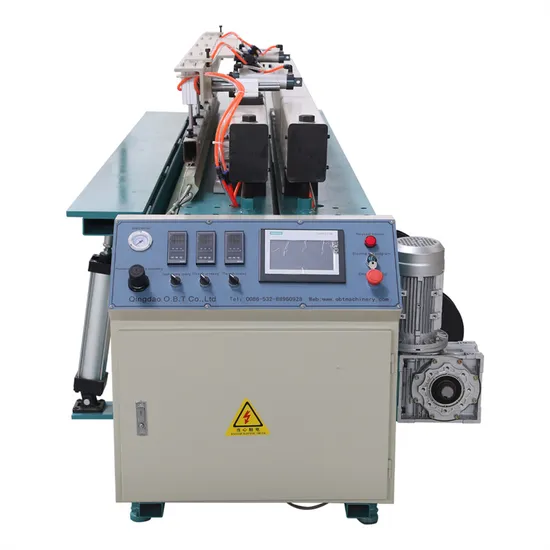

Automatic Plastic Sheet Board Plate PP PE PVC HDPE Polypropylene Butt Welding Rolling Bending Bender Machine Obt-Wb2000

Product Description

Product Description
1.OBT's strong points are its ideas to design and produce accurate, efficient, versatile, and easy-to-use machines. Products range includes plastic welding machine ,plastic bending machine and plastic welding bending machine .OBT is also providing production lines for PP/PE/PVC/PPN sheet.
2.Range of Application:
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.

3.functions:flat welding,rolling welding ,bending 90-180degree

4.Wide applicability:Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
customers.

5.Stable performance: With most-to-up technology and top designers we successfully design and manufacture for The plates processed by our model have good-looking appearance and the angle is very strong.
6.Easy-to-maintain: It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.

7.WARRANTY:Machine Quality Guarantee : 24 months.
If any parts broken or does not work under normal operating, we are free to provide.
Product Parameters

Model	OBT-WB2000	OBT-WB3000	OBT-WB4000
Processing thickness(mm)	3-30mm	3-30mm	3-30mm
Processing length(mm)	2000	3000	4000
Bending angle	90-180	90-180	90-180
Roll circle diameter min(mm)	500	500	500
Air pressure(kg.f/cm2)	6.0-8.0	6.0-8.0	6.0-8.0
The rated voltage(V)	380V 50/60Hz	380V 50/60Hz	380V 50/60Hz
Bending heating power	9kw	9kw	12kw
Welding heating power	5kw	6kw	8kw
Drum institutions motor power	1.5Kw	1.5kw	1.5kw
Length*Width*Height(mm)	3000*1100*1100mm	3950*1100*1100	5000*1100*1200

Control system: Press-button control or touch screen control elected.

Material of heater:imported aluminum heater, teflon coated.

Suitable for material:PP, PE, HDPE, PVDF, PVC, PPN

Application: Plating equipment, environmental equipment, chemical containers, sewage treating pipe, ventilation systems and so on.
