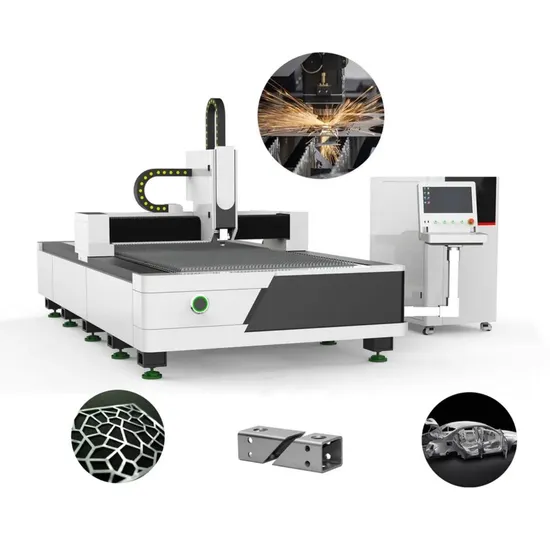

High-Power 3000W Stainless Steel CNC Fiber Laser Cutting Machine

Product Description

Installation accuracy of guide track 1)Lateral linearity of main guide track: 0.4mm/10000mm
2).Lateral linearity of assistant guide track: ≤0.4mm/10000mm
3).Parallel between longitudinal rail-face and level surface of main and assistant guide track: ±0.4mm/10000mm
Shanghai Fangling CNC system
Shanghai Fangling specializes to develop for our flame & plasma cutting machines. The interface design, cutting speed and motion control of the system absorb the most advanced technology both at home and abroad. CPU: Intel 852/855 Board, Lower Power Consumption Design
Plasma power source
1)Maximum productivity 2)Easy-to-use for cutting and gouging
3)Built and tested to withstand the harshest conditions
4)Low operating cost
Long consumable life for lower cost and more uptime.
Exclusive electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused. High power efficiency lowers energy consumption.

Number	Items		Attainable index
1.	The elevation stroke of cutting torch (mm)		100
2.	Cutting thickness(mm)		Plasma quality cutting:12
3.	Installation accuracy of guide track	1)Lateral linearity of main guide track: 0.4mm/10000mm 2).Lateral linearity of assistant guide track: ≤0.4mm/10000mm 3).Parallel between longitudinal rail-face and level surface of main and assistant guide track: ±0.4mm/10000mm
4.	Cross-over point excursion		0.3mm	A)Bearing accuracy and repeat accuracy of the whole machine: corresponding to JB/T5102-1999 standard. B)Accuracy of cutting size and quality of cross-over: corresponding to JB/T10045.4-1999 standard
5.	linearity		0.2mm
6.	Circularity		0.3mm
7.	Diagonal deflection		0.3mm
8.	Repeat bearing accuracy		0.2mm
9.	Travel speed		12000mm/min
10.	Cutting speed		Plasma :0-6000mm/min

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Exhibition
Customer Photos
Certifications

---
