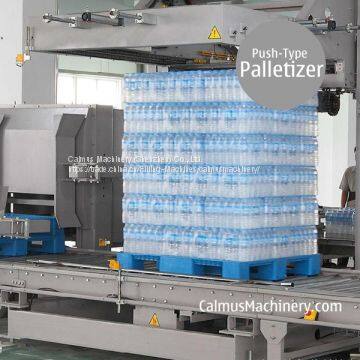

Fully-automatic Film Pack Palletizing Machine | Low-level Push-Type Palletizer
This is a low-level palletizer and used to stack various packs including sealed cartons in order on a pallet. It works automatically and packs can be stacked on a pallet by multiple layers. It employs a touch screen PLC controller and is easy to operate.
Composition:
1. Pack sorting feeder
Sort packs according to a set pattern and then convey them.
2. Pack palletizer
Catch sorted packs and then rise, move and put them on a pallet.
3. Pallet storage and feeder
5-8 empty pallets can be stacked in the storage section. Pallets are fed to the palletizer according to the PLC setting.
4. Loaded pallet deliver
When a pallet is loaded fully, it will be delivered to a designated location.
Materials:
Frame: SS41 steel
Axes: S45C steel
Controller enclosure: SS41 steel
Guide plate: SS41 steel
Specifications:
Power supply: 3 phases, customized voltage, 6KW
Air consumption: 500NL/MIN
Air source pressure: 5-6 kgf/cm2
Weight: 4,000 kg
Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include bag in box fillers, bag in box packaging lines, carton packaging machines, commercial water filtration systems, bottle filling machines and bottle blow molding machines, as well as additional equipment used in the water, beverage and food processing industry.
Contact us today for a competitive price.
>>
