US$1.15
1,000-4,999 Pieces
US$1.10
5,000-9,999 Pieces
Basic Info.
Output Signal Type
Analog Type
Feature
Low Temperature Resistant
Production Process
Normal Wirewound
Specification
80*12.7*12.7
Production Capacity
900000PCS/Year
Product Description
Company Profile

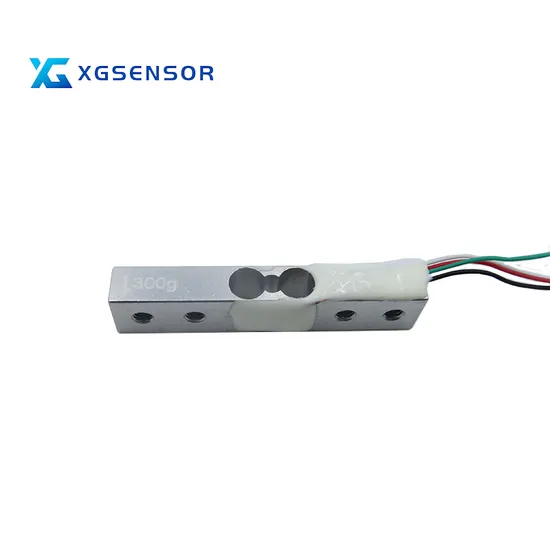

Product picture
Product size drawing
Product parameter list
| capacity | g | 300g 500g 750g |
| Rated Output | mv/v | 0.8±0.15 |
| Non-linearity | %F.S | 0.05%F.S |
| Hysteresis | %F.S | 0.05 |
| Repeatability | %F.S | 0.05 |
| Creep | %F.S/3min | 0.05 |
| Temp.effect on zero | %F.S/10ºC | 0.05%F.S |
| Temp.effect on span | %F.S/10ºC | 0.05%F.S |
| Zero balance | mv/v | ±0.05 |
| Input impedance | Ω | 1000±6 |
| Output impedance | Ω | 1000±5 |
| Insulation resistance | MΩ | ≥2000(100VDC) |
| Recommended excitation voltage | VDC | 3~10 |
| Allowed excitation voltage | VDC | 3~12 |
| Compensated temp.Range | ºC | -10ºC~+40ºC |
| Operating temp.Range | ºC | 0ºC~+40ºC |
| Safe overload | %F.S | 120 |
| Ultimate Overload | %F.S | 150 |
| Connection | Excitation: Red:+ Black:- |
| Signal: Green:+ White:- |
Similar product recommendation Load Cell Accessories
We can also provide peripheral supporting parts of the load cell, such as load cell display, load cell transmitter, load cell mounting bracket and other supporting parts
OEM customization
We can carry out OEM customized design and manufacture according to your ideas to achieve the functions and application scenarios you need.
Customized service
We have an excellent design team, which can provide customized design services according to the functions, precision and application you need.
>>
